Tools and Equipment - Automotive Lifts

or browse the results below.

Page 1 of 1 (Showing results 1 - 27 of 27)
1.) 79325 - Item No.
Manufacturer: Norco

Rolling Lift Bridge 2-1/2 Ton (Manual Hydraulic)


Product image of Norco 79325 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
2.) 79335 - Item No.
Manufacturer: Norco

NORCO 79335 6000 LB. ROLLING LIFT BRIDGE - AIR/HYD. W/O ADAPTER KIT (NARROW)


PRODUCT DETAILS

The Norco 79335 is a narrow 6,000 lb. (3 ton) air/hydraulic rolling lift bridge sold without the adapter kit. It is made for narrow quick-lube pits or above-ground lifts, raising the vehicle's tires off the rails for alignment, brake, tire and suspension work.

FEATURES

  • Push-button air/hydraulic pump for quick, controlled lifting.
  • Lifting pads support the vehicle; rubber-faced saddles allow differential lifting.
  • Mechanical stop prevents the bridge from lowering accidentally.
  • Includes two 3-1/2 in. adapters, two 5 in. adapters and two padded saddles with extension screws.
  • Flat-end (79326D) and hook-end (79327D) adapter bracket kits are sold separately.
  • Universal mounting brackets fit lift rails from 32 in. to 46-1/2 in.

SPECS

Capacity6,000 lb. (3 tons); raise at least 3.25 in. for maximum capacity
TypeRolling lift bridge, air/hydraulic (narrow)
Lift stroke9 in.
Adapter kitNot included
Shipping weight325 lb

PRODUCT DIMENSIONS

Lift height range9.375 in. to 18.375 in.
Arm span34.6875 in. to 62.8125 in.
Overall width21.5 in.

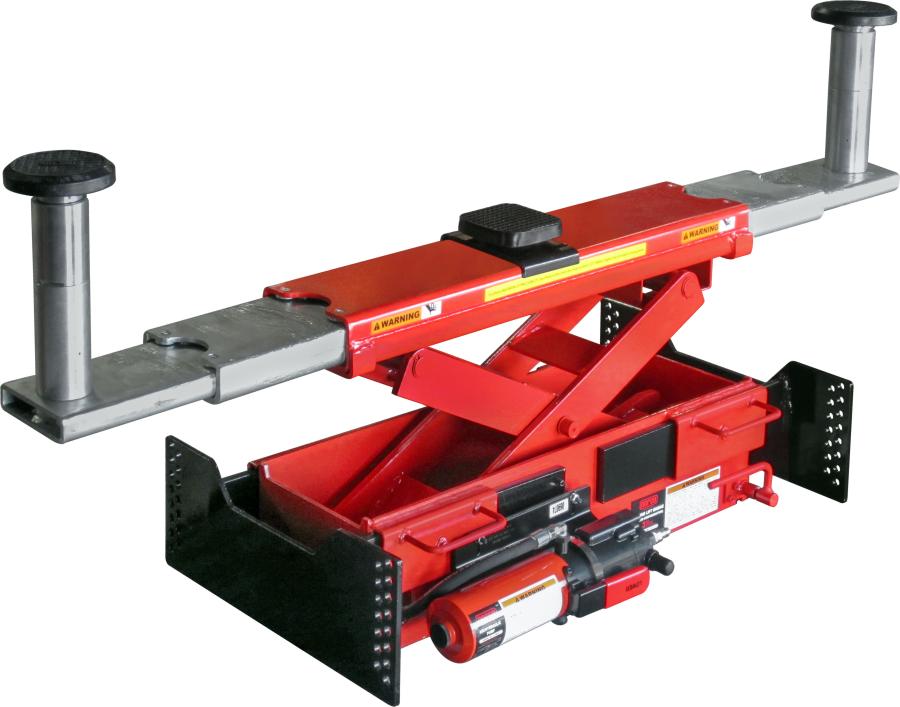

Product image of Norco 79335 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $4,683.29
3.) 79345 - Item No.
Manufacturer: Norco

3 Ton Capacity Air / Hydraulic Pump Operated Electric Vehicle Rolling Lift Bridge


NOTE: To achieve maximum lifting capacity, the lifting surface must be raised at least 3.25” higher than its lowest point.

NOTE: The model 79326D flat-end or model 79327D hook-end adapter kits must be ordered separately to connect the universal mounting bracket to the pit/lift rails.
INTENDED USE:

Used in quick lube pit applications or in conjunction with above ground lifts. It has lift arms that are wider than our other bridges to meet the needs of wide electric vehicles. This bridge straddles the lift rails and raises the vehicle’s tires off the rails for wheel alignment, brake, tire and suspension work.


DIMENSIONS:
Stroke 9"
Length 35.75"
Width 21.5"
Height 9.5625"
Shipping Weight 350 lbs.

FEATURES:
  • Push button air/hydraulic pump provides safe, quick lifting up to 9” which allows for a maximum lift height of 19-7/8" when using both adapters and extension screw extended.
  • The lifting pads safely support the vehicle on the bridge and the adjustable lift arms span up to 71-5/8”.
  • Universal mounting brackets adjust to a lift rail range of 32" to 46-1/2”.
  • Flat-end and hook-end adapter brackets are equipped with spring-loaded roller bearings for
    smooth maneuverability of bridge on lift rails. These brackets are sold separately.
  • Mechanical stop prevents accidental lowering of bridge.
  • Lowering is accomplished with one hand on the release lever and the other hand releasing the mechanical stop.
  • Equipped with rubber faced saddles for differential lifting.
  • Included lift adapters: (2) 3-1/2” Adapters, (2) 5” Adapters, and (2) Padded Saddles w/ Extension Screws
  • Available mounting adapters:
    79326D: Flat-End Adapter Bracket Kit
    79327D: Hook-End Adapter Bracket Kit
  • Overall width from outside edge of lift pad:
    - Arms retracted: 36-11/16”
    - Arms extended: 71-5/8”



Product image of Norco 79345 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $4,020.00 Request Quote
4.) 86000 - Item No.
Manufacturer: Norco

Mid-Rise Lift 3 Ton


Product image of Norco 86000 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
5.) 86002 - Item No.
Manufacturer: Norco

Mid-Rise Lift 3 Ton


Product image of Norco 86002 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
6.) 86006 - Item No.
Manufacturer: Norco

Mid-Rise Lift 3 Ton


Product image of Norco 86006 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
7.) SD20L - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD20L 2 TON HAND HYDRAULIC JACKING BEAM FOR PASSENGER CARS AND VANS


PRODUCT DETAILS

The AC Hydraulic SD20L is a 2 ton hand hydraulic jacking beam for passenger cars and vans. A manual double-acting pump lifts quickly, and the 7.09 in. closed height suits vehicles with low clearance. The telescopic top support beam extends to 63.39 in.

FEATURES

  • Low closed height of 7.09 in. for vehicles with low clearance
  • Flexible top support beam extends to 63.39 in.
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Manual double-acting hand pump for quick, efficient lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve
  • Includes three extension sets (0.39 in., 1.57 in. and 3.35 in.) and a rubber cushion to protect the car body

SPECS

Capacity4,400 lb (2 ton)
Stroke9.84 in.
Minimum height7.09 in.
Shipping weight231 lb

PRODUCT DIMENSIONS

Telescopic arm length30.71 in. to 63.39 in.
Width without support arms30.71 in. to 46.46 in.
Lifting frame height4.72 in.
Lifting frame depth9.84 in.



Product image of AC Hydraulic SD20L on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $2,055.03
8.) SD26L - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD26L 2.6 TON HAND HYDRAULIC JACKING BEAM FOR PASSENGER CARS AND VANS


PRODUCT DETAILS

The AC Hydraulic SD26L is a 2.6 ton hand hydraulic jacking beam for passenger cars and vans. A manual double-acting pump lifts quickly, and the 7.09 in. closed height suits vehicles with low clearance. The telescopic top support beam extends to 63.39 in.

FEATURES

  • Low closed height of 7.09 in. for vehicles with low clearance
  • Flexible top support beam extends to 63.39 in.
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Manual double-acting hand pump for quick, efficient lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve
  • Includes three extension sets (0.39 in., 1.57 in. and 3.35 in.) and a rubber cushion to protect the car body

SPECS

Capacity 5,200 lb (2.6 ton)
Stroke 9.84 in.
Minimum height 7.09 in.
Shipping weight 231 lb

PRODUCT DIMENSIONS

Telescopic arm length 30.71 in. to 63.39 in.
Width without support arms 30.71 in. to 46.46 in.
Lifting frame height 4.72 in.
Lifting frame depth 9.84 in.



Product image of AC Hydraulic SD26L on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $2,271.20
9.) 79324A - Item No.
Manufacturer: Norco

Air/Hydraulic Rolling Lift Bridge 2-1/2 Ton (Made in Denmark)


Product image of Norco 79324A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
10.) 79324B - Item No.
Manufacturer: Norco

Air/Hydraulic Rolling Lift Bridge 2-1/2 Ton


Product image of Norco 79324B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
11.) 79324E - Item No.
Manufacturer: Norco

3 Ton Air/Hydraulic Rolling Lift Bridge


Product image of Norco 79324E on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
12.) 79324F - Item No.
Manufacturer: Norco

3 Ton Air/Hydraulic Rolling Lift Bridge


Product image of Norco 79324F on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
13.) 79324G - Item No.
Manufacturer: Norco

NORCO 79324G 6000 LB. ROLLING LIFT BRIDGE - AIR/HYD. W/O ADAPTER KIT


PRODUCT DETAILS

The Norco 79324G is a 6,000 lb. (3 ton) air/hydraulic rolling lift bridge sold without the adapter kit. The rubber-faced saddle supports differential lifting and a mechanical stop guards against accidental lowering.

FEATURES

  • Mechanical stop prevents accidental lowering of the bridge.
  • Rubber-faced saddle for differential lifting.
  • Air/hydraulic pump operated.

SPECS

Capacity6,000 lb. (3 tons) at 100 psi
TypeRolling lift bridge, air/hydraulic
Adapter kitNot included
Shipping weight325 lb

PRODUCT DIMENSIONS

Lift height range9.375 in. to 18.375 in.
Overall length40.25 in. to 62.5 in.
Overall width21.5 in.



Product image of Norco 79324G on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $3,737.06
14.) MAX-JAX - Item No.
Manufacturer: Dannmar

Mid-Rise Lift 6,000 LB







Product image of Dannmar MAX-JAX on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: N/A Request Quote
15.) SD20L-W - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD20L-W 2 TON WIDE VERSION HAND HYDRAULIC JACKING BEAM


PRODUCT DETAILS

The AC Hydraulic SD20L-W is the wide version of the 2 ton hand hydraulic jacking beam for passenger cars and vans, designed for lifting at the outer sill. A manual double-acting pump lifts quickly, and the flexible top support beam extends to 73.43 in.

FEATURES

  • Wide version for outer sill lifting (for example, VAG vehicles)
  • Flexible top support beam extends to 73.43 in.
  • Low closed height of 7.09 in. for vehicles with low clearance
  • Height-adjustable bracket system fits current lifts
  • Manual double-acting hand pump for quick, efficient lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve
  • Includes three extension sets and rubber cushions to protect the car body

SPECS

Capacity 4,400 lb (2 ton metric)
Minimum height 7.09 in.

PRODUCT DIMENSIONS

Maximum width 73.43 in.



Product image of AC Hydraulic SD20L-W on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $2,416.52
16.) SD20PHL - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD20PHL 2 TON AIR HYDRAULIC JACKING BEAM FOR PASSENGER CARS AND VANS


PRODUCT DETAILS

The AC Hydraulic SD20PHL is a 2 ton air hydraulic jacking beam for passenger cars and vans. A fast, quiet air-powered pump lifts the load, the closed height is 7.09 in., and the telescopic top support beam extends to 63.39 in..

FEATURES

  • Low closed height of 7.09 in. for vehicles with low clearance
  • Top support beam extends to 63.39 in.
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Quiet, reliable air-powered pump for quick lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve
  • Includes three extension sets (0.39 in., 1.57 in. and 3.35 in.) and a rubber cushion to protect the car body

SPECS

Capacity4,400 lb (2 ton)
Stroke9.84 in.
Minimum height7.09 in.
Air supply102 to 174 psi
Air consumption12.4 cfm
Shipping weight243 lb

PRODUCT DIMENSIONS

Telescopic arm length30.71 in. to 63.39 in.
Width without support arms30.71 in. to 46.46 in.
Lifting frame height4.72 in.
Lifting frame depth9.84 in.



Product image of AC Hydraulic SD20PHL on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $2,732.54
17.) SD26L-W - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD26L-W 2.6 TON WIDE VERSION HAND HYDRAULIC JACKING BEAM


PRODUCT DETAILS

The AC Hydraulic SD26L-W is the wide version of the 2.6 ton hand hydraulic jacking beam for passenger cars and vans, designed for lifting at the outer sill. A manual double-acting pump lifts quickly, and the flexible top support beam extends to 73.43 in.

FEATURES

  • Wide version for outer sill lifting (for example, VAG vehicles)
  • Flexible top support beam extends to 73.43 in.
  • Low closed height of 7.09 in. for vehicles with low clearance
  • Height-adjustable bracket system fits current lifts
  • Manual double-acting hand pump for quick, efficient lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve
  • Includes three extension sets and rubber cushions to protect the car body

SPECS

Capacity5,700 lb (2.6 ton)
Minimum height7.09 in.

PRODUCT DIMENSIONS

Maximum width73.43 in.



Product image of AC Hydraulic SD26L-W on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $2,614.76
18.) SD26PHL - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD26PHL 2.6 TON AIR HYDRAULIC JACKING BEAM FOR PASSENGER CARS AND VANS


PRODUCT DETAILS

The AC Hydraulic SD26PHL is a 2.6 ton air hydraulic jacking beam for passenger cars and vans. A fast, quiet air-powered pump lifts the load, the closed height is 7.09 in., and the telescopic top support beam extends to 63.39 in..

FEATURES

  • Low closed height of 7.09 in. for vehicles with low clearance
  • Top support beam extends to 63.39 in.
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Quiet, reliable air-powered pump for quick lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve
  • Includes three extension sets (0.39 in., 1.57 in. and 3.35 in.) and a rubber cushion to protect the car body

SPECS

Capacity5,700 lb (2.6 ton)
Stroke9.84 in.
Minimum height7.09 in.
Air supply102 to 174 psi
Air consumption12.4 cfm
Shipping weight243 lb

PRODUCT DIMENSIONS

Telescopic arm length30.71 in. to 63.39 in.
Width without support arms30.71 in. to 46.46 in.
Lifting frame height4.72 in.
Lifting frame depth9.84 in.



Product image of AC Hydraulic SD26PHL on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $2,974.73
19.) SD32PHL - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD32PHL 3.2 TON AIR HYDRAULIC JACKING BEAM FOR PASSENGER CARS AND VANS


PRODUCT DETAILS

The AC Hydraulic SD32PHL is a 3.2 ton air hydraulic jacking beam for passenger cars and vans. A fast, quiet air-powered pump lifts the load, the closed height is 9.06 in., and the telescopic top support beam extends to 63.39 in..

FEATURES

  • Strong, robust design for heavier vehicles
  • Top support beam extends to 63.39 in.
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Quiet, reliable air-powered pump for quick lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve
  • Includes three extension sets (0.39 in., 1.57 in. and 3.35 in.) and a rubber cushion to protect the car body

SPECS

Capacity7,000 lb (3.2 ton)
Stroke9.84 in.
Minimum height9.06 in.
Air supply87 to 174 psi
Air consumption12.4 cfm
Shipping weight386 lb

PRODUCT DIMENSIONS

Telescopic arm length30.71 in. to 63.39 in.
Width without support arms30.71 in. to 48.03 in.
Lifting frame height6.30 in.
Lifting frame depth13.58 in.


 Price: $4,123.37
20.) SD40PHL - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD40PHL 4 TON AIR HYDRAULIC JACKING BEAM FOR PASSENGER CARS, VANS AND TRUCKS


PRODUCT DETAILS

The AC Hydraulic SD40PHL is a 4 ton air hydraulic jacking beam for passenger cars, vans and trucks. A fast, quiet air-powered pump lifts the load, the closed height is 9.06 in., and the telescopic top support beam extends to 59.06 in..

FEATURES

  • Strong, robust design for heavy vehicles
  • Top support beam extends to 59.06 in.
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Quiet, reliable air-powered pump for quick lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve
  • Includes two extension sets (1.97 in. and 3.94 in.)

SPECS

Capacity8,800 lb (4 ton)
Stroke9.84 in.
Minimum height9.06 in.
Air supply87 to 174 psi
Air consumption12.4 cfm
Shipping weight386 lb

PRODUCT DIMENSIONS

Telescopic arm length30.71 in. to 59.06 in.
Width without support arms30.71 in. to 48.03 in.
Lifting frame height6.30 in.
Lifting frame depth13.58 in.


 Price: $5,421.20
21.) SD100PHL - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD100PHL 10 TON AIR HYDRAULIC JACKING BEAM


PRODUCT DETAILS

The AC Hydraulic SD100PHL is a 10 ton air hydraulic jacking beam with an 11.02 in. stroke. The flexible top support beam extends to 65.75 in. for easy access to lifting points.

FEATURES

  • Flexible top support beam extends to 65.75 in. for easy access to lifting points
  • Height-adjustable mounting bracket system for a fit in your pit or on any lift
  • Two-hand lowering with dead man's release, mechanical safety stop and overload valve

SPECS

Capacity22,000 lb (10 ton)
Stroke11.02 in.

PRODUCT DIMENSIONS

Maximum width65.75 in.


 Price: $8,368.72
22.) SD20PHL-A - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD20PHL-A 2 TON AUTOMATIC AIR HYDRAULIC JACKING BEAM


PRODUCT DETAILS

The AC Hydraulic SD20PHL-A is an automatic 2 ton air hydraulic jacking beam for inspection centers and workshops that perform many lifts. Each lifting arm has its own joystick, and a remote control lowers the arms and retracts them to the closed position.

FEATURES

  • Individual joystick control of each lifting arm
  • Remote control lowers the lifting arms and retracts them to the closed position
  • Remote sits beside the lift control panel to support safe operation
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Includes three extension sets (0.39 in., 1.57 in. and 3.35 in.) and a rubber cushion to protect the car body

SPECS

Capacity4,400 lb (2 ton)
Stroke9.84 in.
Minimum height7.87 in.
Air supply102 to 174 psi
Air consumption12.4 cfm
Shipping weight265 lb

PRODUCT DIMENSIONS

Telescopic arm length30.71 in. to 59.06 in.
Width without support arms30.71 in. to 46.46 in.
Lifting frame height4.72 in.
Lifting frame depth9.84 in.


 Price: $5,465.07
23.) SD20PHL-W - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD20PHL-W 2 TON WIDE VERSION AIR HYDRAULIC JACKING BEAM


PRODUCT DETAILS

The AC Hydraulic SD20PHL-W is the wide version of the 2 ton air hydraulic jacking beam. A quiet air-powered pump lifts the load, and the flexible top support beam extends to 73.43 in. to reach lifting points farther out on the vehicle.

FEATURES

  • Wide version with a top support beam that extends to 73.43 in.
  • Low closed height of 7.09 in. for vehicles with low clearance
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Quiet, reliable air-powered pump for quick lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve
  • Includes three extension sets and a rubber cushion to protect the car body

SPECS

Capacity4,400 lb (2 ton)
Stroke9.84 in.
Minimum height7.09 in.

PRODUCT DIMENSIONS

Maximum width73.43 in.



Product image of AC Hydraulic SD20PHL-W on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $3,635.54
24.) SD26PHL-A - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD26PHL-A 2.6 TON AUTOMATIC AIR HYDRAULIC JACKING BEAM


PRODUCT DETAILS

The AC Hydraulic SD26PHL-A is an automatic 2.6 ton air hydraulic jacking beam for inspection centers and workshops that perform many lifts. Each lifting arm has its own joystick, and a remote control lowers the arms and retracts them to the closed position.

FEATURES

  • Individual joystick control of each lifting arm
  • Remote control lowers the lifting arms and retracts them to the closed position
  • Remote sits beside the lift control panel to support safe operation
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Includes three extension sets (0.39 in., 1.57 in. and 3.35 in.) and a rubber cushion to protect the car body

SPECS

Capacity5,700 lb (2.6 ton)
Stroke9.84 in.
Minimum height7.87 in.
Air supply102 to 174 psi
Air consumption12.4 cfm
Shipping weight265 lb

PRODUCT DIMENSIONS

Telescopic arm length30.71 in. to 59.06 in.
Width without support arms30.71 in. to 46.46 in.
Lifting frame height4.72 in.
Lifting frame depth9.84 in.


 Price: $5,699.36
25.) SD26PHL-W - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD26PHL-W 2.6 TON WIDE VERSION AIR HYDRAULIC JACKING BEAM


PRODUCT DETAILS

The AC Hydraulic SD26PHL-W is the wide version of the 2.6 ton air hydraulic jacking beam. A quiet air-powered pump lifts the load, and the flexible top support beam extends to 73.43 in. to reach lifting points farther out on the vehicle.

FEATURES

  • Wide version with a top support beam that extends to 73.43 in.
  • Low closed height of 7.09 in. for vehicles with low clearance
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Quiet, reliable air-powered pump for quick lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve
  • Includes three extension sets and a rubber cushion to protect the car body

SPECS

Capacity5,700 lb (2.6 ton)
Stroke9.84 in.
Minimum height7.09 in.

PRODUCT DIMENSIONS

Maximum width73.43 in.



Product image of AC Hydraulic SD26PHL-W on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $3,814.49
26.) SD32PHL-W - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD32PHL-W 3.2 TON WIDE VERSION AIR HYDRAULIC JACKING BEAM


PRODUCT DETAILS

The AC Hydraulic SD32PHL-W is the wide version of the 3.2 ton air hydraulic jacking beam. A quiet air-powered pump lifts the load, and the flexible top support beam extends to 74.88 in. to reach lifting points farther out on the vehicle.

FEATURES

  • Wide version with a top support beam that extends to 74.88 in.
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Quiet, reliable air-powered pump for quick lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve

SPECS

Capacity7,000 lb (3.2 ton)
Stroke9.84 in.

PRODUCT DIMENSIONS

Maximum width74.88 in.


 Price: $4,700.77
27.) SD40PHL-W - Item No.
Manufacturer: AC Hydraulic

AC HYDRAULIC SD40PHL-W 4 TON WIDE VERSION AIR HYDRAULIC JACKING BEAM


PRODUCT DETAILS

The AC Hydraulic SD40PHL-W is the wide version of the 4 ton air hydraulic jacking beam. A quiet air-powered pump lifts the load, and the flexible top support beam extends to 74.88 in. to reach lifting points farther out on the vehicle.

FEATURES

  • Wide version with a top support beam that extends to 74.88 in.
  • Height-adjustable support arm system fits current lifts and pits (support arms are ordered by lift type)
  • Quiet, reliable air-powered pump for quick lifting
  • Two-hand lowering with dead man's release
  • Automatic safety locking device and overload valve

SPECS

Capacity8,800 lb (4 ton)
Stroke9.84 in.

PRODUCT DIMENSIONS

Maximum width74.88 in.


 Price: $6,242.54
Page 1 of 1 (Showing results 1 - 27 of 27)

« Back to Tools and Equipment Categories
