Tools and Equipment - AC Hydraulic

Categories

or browse the results below.

Page 1 of 1 (Showing results 1 - 8 of 8)
1.) 079 - Item No.

Product image of 079 on HCRCnow.com.
Price: Discontinued This product has been discontinued.
2.) 2000 - Item No.

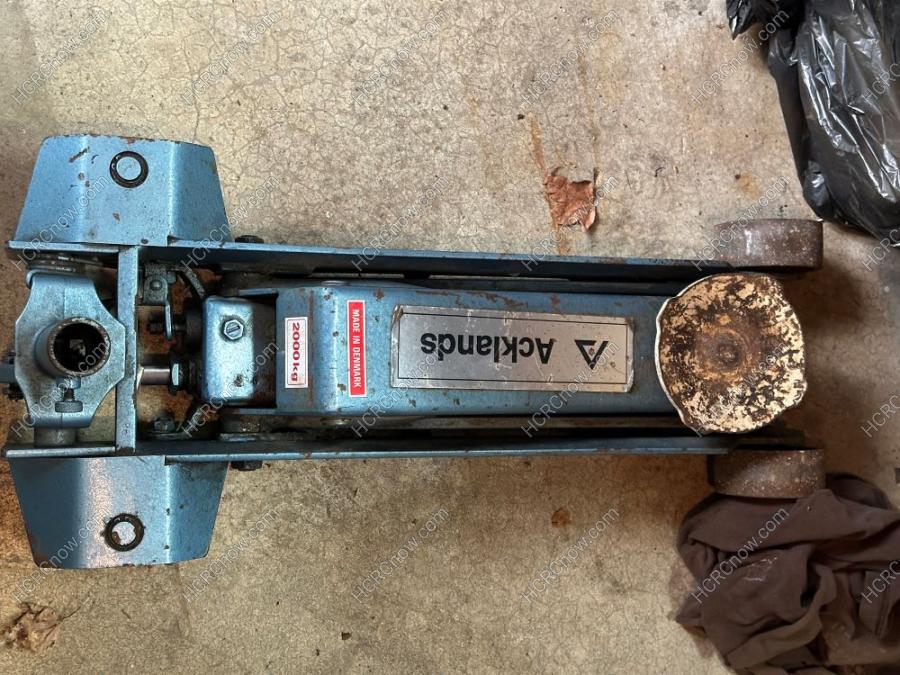

Hydraulic Floor Jack 2000 Kg


Product image of 2000 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
3.) DK20 - Item No.

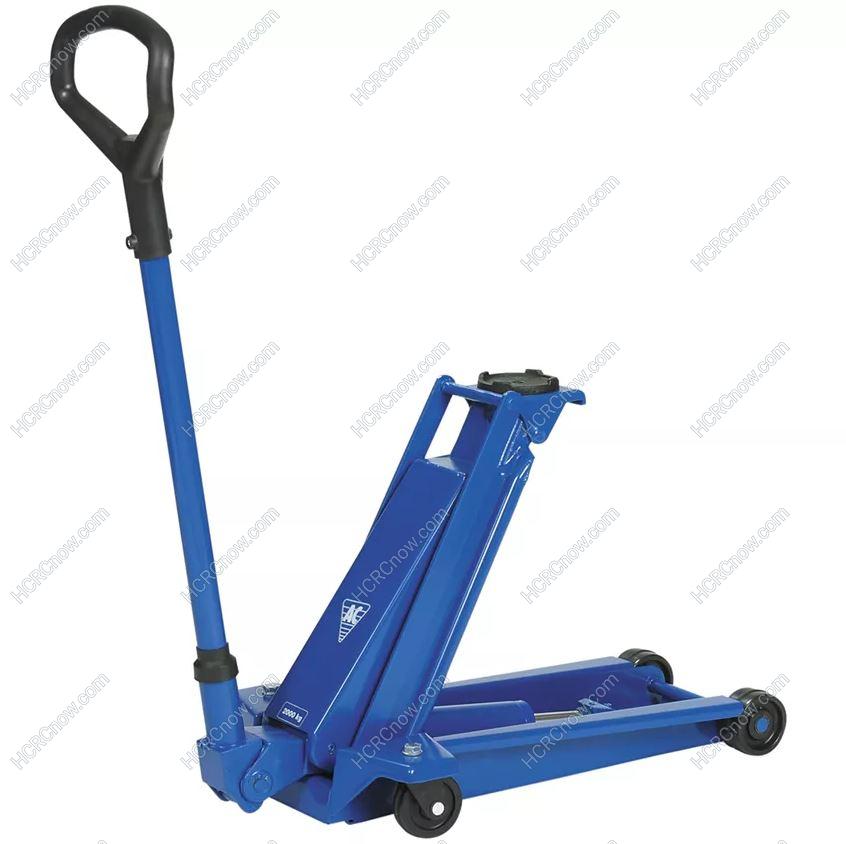

AC Hydraulic DK20 2 Ton Hydraulic Floor Jack


Product Details

The AC Hydraulic DK20 is a professional-grade 2 ton hydraulic floor jack designed for passenger cars and vans. Its exceptionally low 80 mm minimum height allows access to low-clearance vehicles while the high-strength steel chassis delivers the durability required for daily professional workshop use.

Features

  • Designed for passenger cars and vans
  • Very low minimum height of only 80 mm
  • Wide and robust frame manufactured from high-strength steel
  • Precise and safe lowering control
  • Manual dead man's release for enhanced safety
  • Professional workshop-grade construction
  • Complies with EN1494 standards

Specifications

Capacity2 Ton (2,000 kg)
Minimum Height80 mm
Maximum Height495 mm
Frame Height160 mm
Handle Length950 mm
Weight31 kg


Product Dimensions

Length660 mm
Width410 mm
Height160 mm



Product image of DK20 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $435.50
4.) VLT6 - Item No.

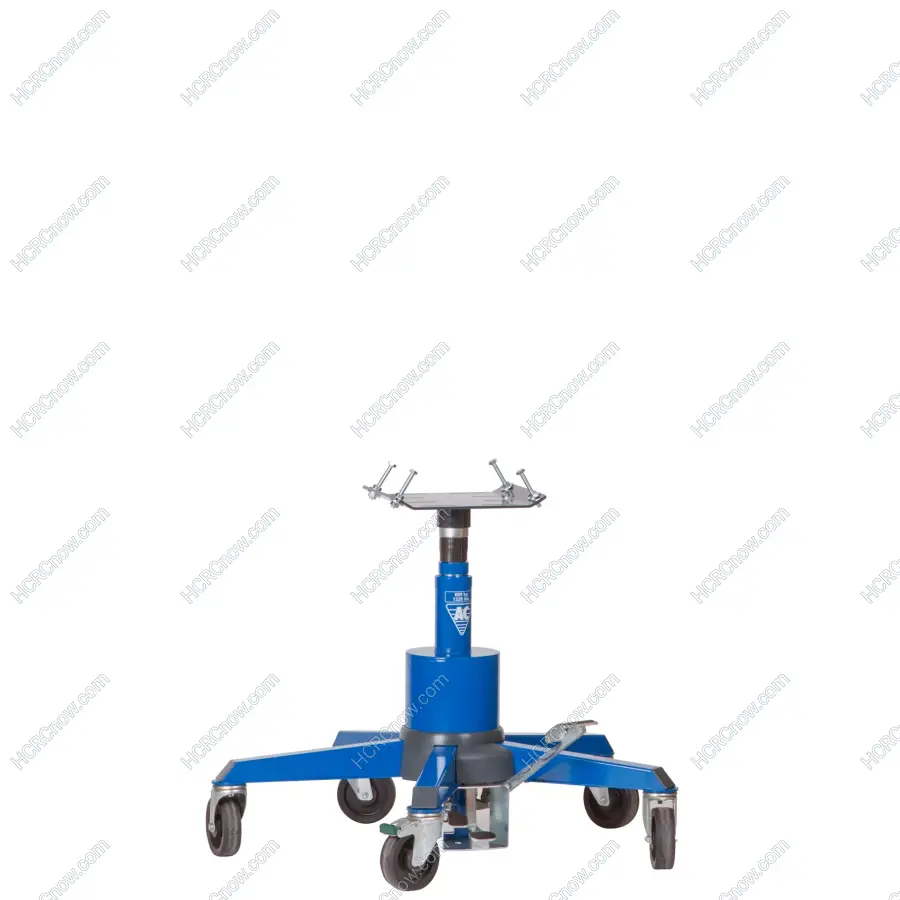

Hydr. transmission Jack, 0,6 t


Specifications

  • Capacity: .6 Ton
  • Air Capacity / Height Steps: 200 kg / 1120 mm   120 kg / 1520 mm  60 kg / 1915 mm
  • Min height: 720 mm
  • Max height: 1915 mm
  • Cylinder Diameter: 30 mm
  • Width: 950 mm
  • Castor Wheel: 125 mm
  • Air Supply: 2 - 10 bar
  • Weight: 53 kg (116.6 lbs)



Product image of VLT6 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $3,163.86
5.) DK20Q - Item No.
Hydraulic Garage Jack 2 Ton with quick-lift pedal


Specifications

  • Capacity: 2 Ton
  • Min height: 80 mm
  • Max height: 495 mm
  • Frame length: 660 mm
  • Frame height: 160 mm
  • Handle length: 950 mm
  • Width: 410 mm
  • Weight: 31 kg
  • Very low minimum height of only 80 mm
  • Wide and robust frame made of high-strength steel
  • Precise and safe control whilst lowering
  • Manual dead man’s release for optimum safety when lowering
  • DK20Q is fitted with quick-lift pedal for easy reach of lifting point






Product image of DK20Q on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $463.91 Request Quote
6.) DK13HLQ - Item No.

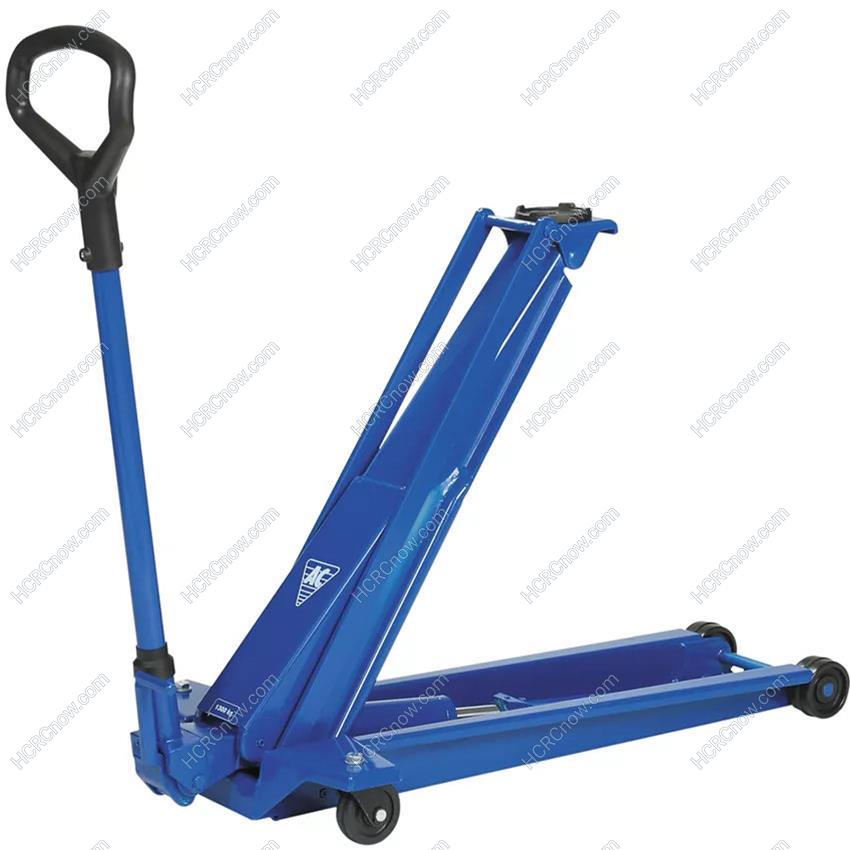

Hydraulic Floor Jack 1,300 Kg


Specifications

  • Very low minimum height of only 3.15 in.
  • Wide and robust frame made of high-strength steel
  • Fitted with quick-lift pedal for easy reach of lifting point
  • Precise and safe control whilst lowering
  • Capacity: 2,900 lb
  • Min height: 3.15 in
  • Max height: 28.94 in
  • Frame length: 37.01 in
  • Frame height: 6.30 in
  • Handle length: 37.40 in
  • Width: 18.90 in
  • Weight: 86 lb



Product image of DK13HLQ on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: N/A Request Quote
7.) DK20HLQ - Item No.

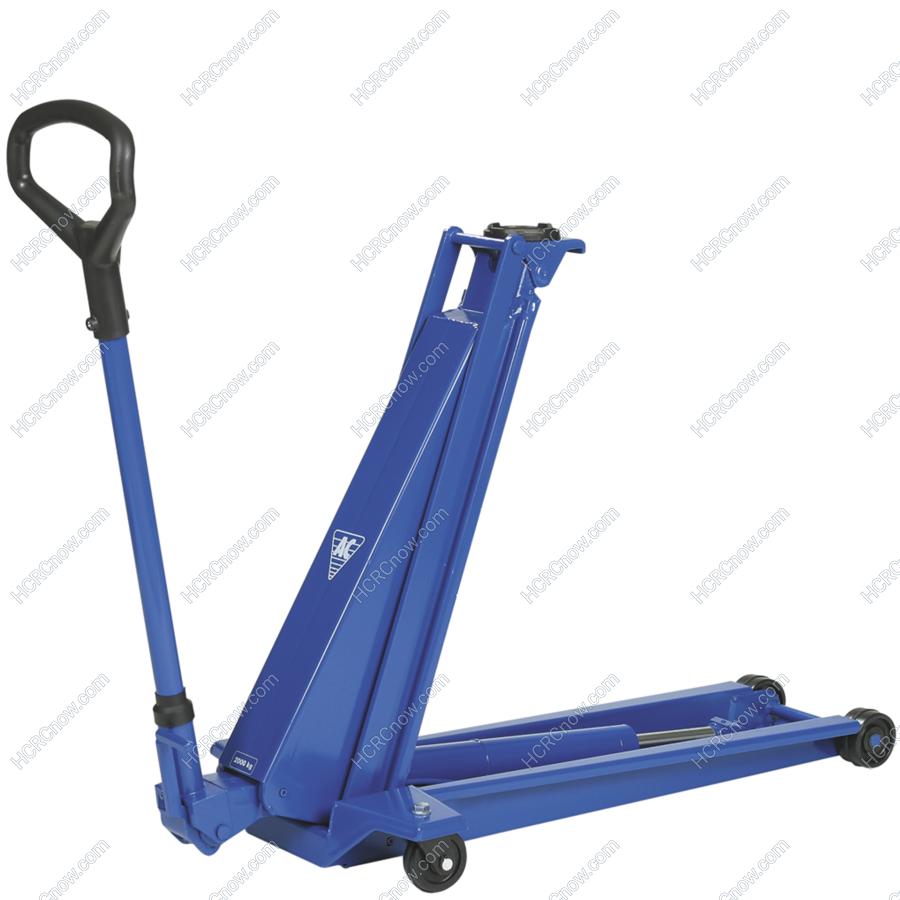

Hydraulic High Lifting Garage Jack 2.2 Ton with quick-lift pedal


Specifications

  • Capacity: 4,400 lb
  • Min height: 3.15 in
  • Max height: 31.30 in
  • Frame length: 37.40 in
  • Frame height: 8.66 in
  • Handle length: 37.40 in
  • Width: 19.69 in
  • Weight: 108 lb
  • Very low minimum height of only 3.15 in.
  • Wide and robust frame made of high-strength steel
  • Quick-lift pedal for easy reach of lifting point
  • Precise and safe control whilst lowering



Product image of DK20HLQ on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $862.78 Request Quote
8.) WJN12-EUR - Item No.

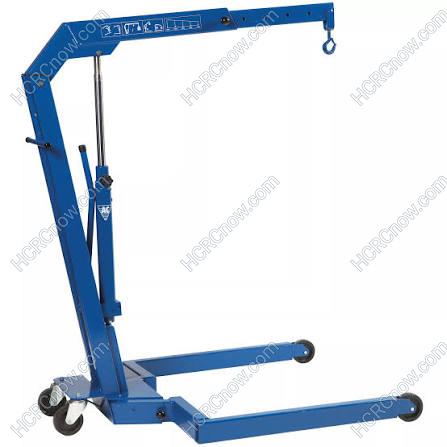

Hydraulic Workshop Crane


Product image of WJN12-EUR on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
Page 1 of 1 (Showing results 1 - 8 of 8)
