Product Details

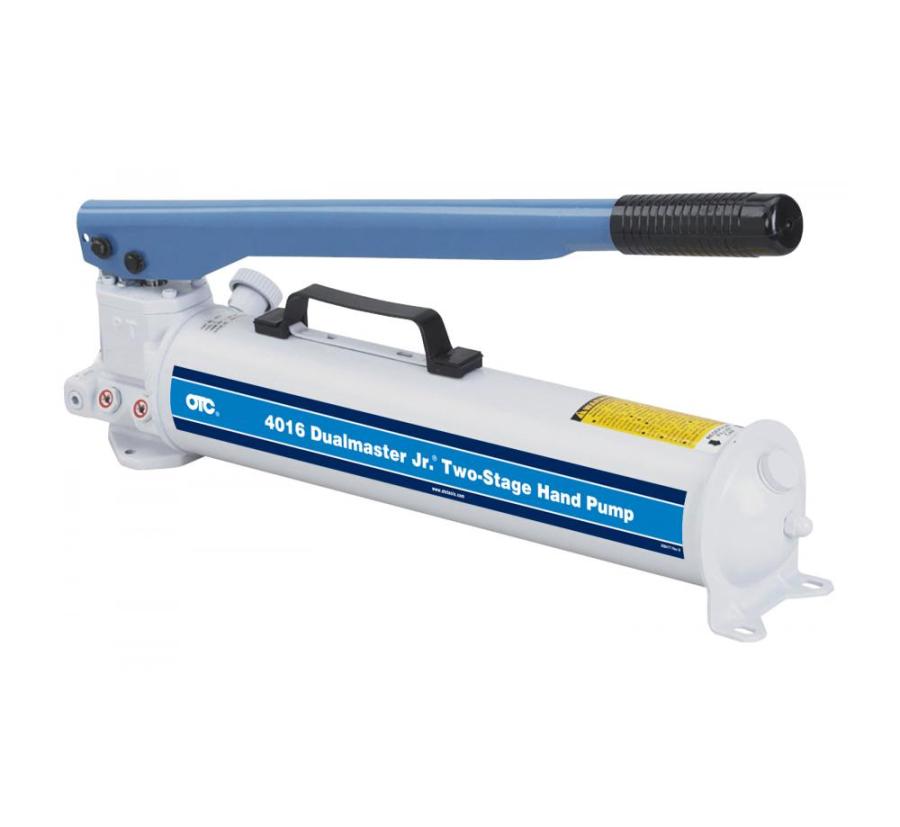

The Dualmaster Jr. pumps offer reliable, portable hydraulic power at an affordable price. Featuring a large 125 cu. in. usable oil reservoir, these compact,
lightweight pumps are ideal for large hydraulic rams or multiple smaller ram applications.

Both models deliver high oil volume (2.6 cu. in. per stroke) for rapid ram movement, then automatically switch at 300 PSI to a high-pressure, low-volume stage
(0.16 cu. in. per stroke) for high-force applications.

Features include a non-vented reservoir with a safety relief valve, a 3/4" piston stroke, and a maximum handle effort of 130 lbs. at 10,000 PSI.

• Model 4016: 2-way valve for single-acting rams.
• Model 4017: 4-way valve for double-acting rams.

  Ideal for automotive, heavy-duty truck, agricultural, and construction maintenance applications.

Specs

Maximum Pressure | 1st Stage: 300 PSI, 2nd Stage: 10,000 PSI
Volume Per Stroke | 1st Stage: 2.6 cu. in., 2nd Stage: .16 cu. in.
Piston Stroke | ¾"
Reservoir Capacity | 125 cu. in. usable
Oil Port | 3/8" NPTF
Dimensions | 24.3 × 7 × 8.9
Weight | 27.6 lb

Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

• Serial# 78-004250 and Below
• Made in Taiwan
