Tools and Equipment - Shop Presses

or browse the results below.

Page 1 of 1 (Showing results 1 - 11 of 11)
1.) 78024 - Item No.
Shop Press 25 Ton


Product image of 78024 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
2.) 78050 - Item No.
Shop Press 50 Ton


Product image of 78050 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
3.) 78055 - Item No.
Shop Press 55 Ton


Product image of 78055 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
4.) 78058 - Item No.
Shop Press 50 Ton


Product image of 78058 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
5.) 78077 - Item No.
50 Ton Capacity Air / Hydraulic Pump Operated Shop Press w/ 13 1/4" Stroke


INTENDED USE:

Heavy duty use in truck garages and industrial work shops. Equipped with
an air/hydraulic foot pump and model 910036A 10’ hose.

FEATURES:
  • Welded frame, fully assembled, tested, and ready to put to work.
  • Equipped with high speed air/hydraulic foot pump.
  • Safety overload system protects power unit.
  • Hand operated winch raises and lowers press bed.
  • Liquid filled gauge measures ram force in pounds and tons.
  • Self-retracting ram is bearing mounted for lateral movement on head channel.
DIMENSIONS:
Ram Travel 13.25"
Min. Throat Height 7.5"
Max. Throat Height 32.625"
Throat Width 34.5"
Bed Height Adj. 7 x 5"
Between Uprights 5.625"
Between Bed Rails 7.375"
Base Width 50"
Base Depth 40"
Overall Height 72.75"
Shipping Weight 801 lbs.

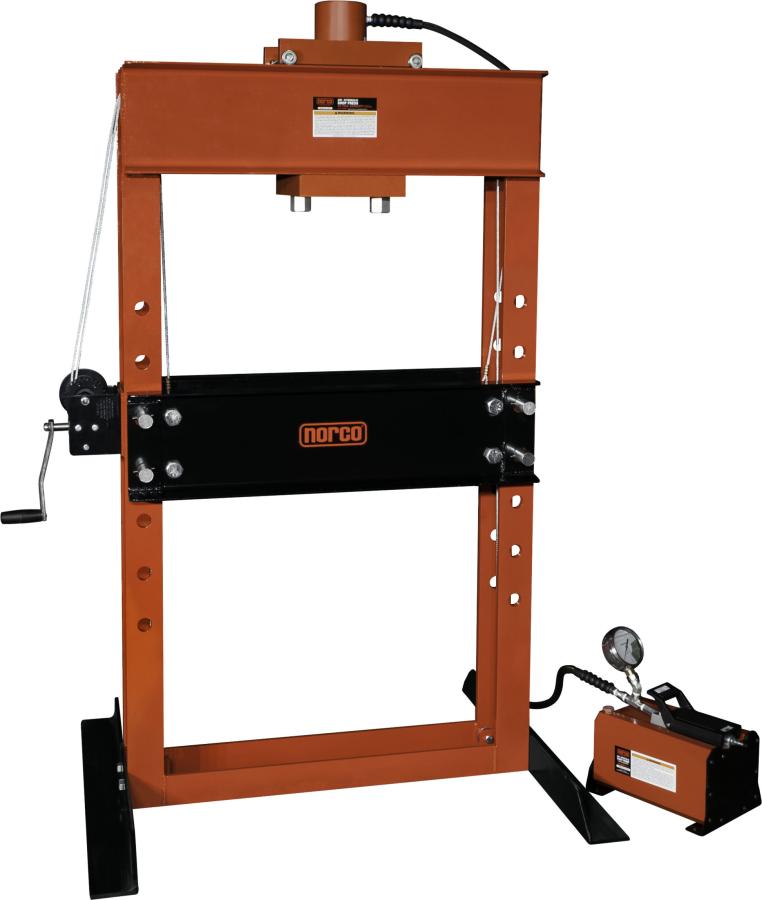

Product image of 78077 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $6,120.00 Request Quote
6.) 78078 - Item No.
50 Ton Press with Electro/Hydraulic Foot Pump - 13 1/4 Inch Stroke


INTENDED USE:

Heavy duty use in truck garages and industrial work shops. Equipped with model 910052A electro/hydraulic pump and model 910036A 10’ hose.

FEATURES:
  • Welded frame, fully assembled, tested, and ready to put to work.
  • Equipped with high speed electro/hydraulic pump.
  • Safety overload system protects power unit.
  • Hand operated winch raises and lowers press bed.
  • Liquid filled gauge measures ram force in pounds and tons.
  • Self-retracting ram is bearing mounted for lateral movement on head channel.
DIMENSIONS:
Ram Travel 13.25"
Min. Throat Height 7.5"
Max. Throat Height 32.625"
Throat Width 34.5"
Bed Height Adj. 7 x 5"
Between Uprights 5.625"
Between Bed Rails 7.375"
Base Width 50"
Base Depth 40"
Overall Height 72.75"
Shipping Weight 814 lbs.







Product image of 78078 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $8,439.00 Request Quote
7.) 78110 - Item No.
Shop Press 110 Ton (Made in Mexico)


Product image of 78110 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
8.) 78013B - Item No.
12-1/2 Ton Capacity Hand Pump Operated Shop Press


INTENDED USE:

Straightening, bending & pressing.
Removing & installing gears,
bearings & bushings.

FEATURES:
  • Welded frame, fully assembled, tested, and ready to put to work.
  • Manual pump power unit with “Parkerized” pump piston, ram and extension screw to inhibit rust from entering the hydraulic system.
  • Pair of bed plates included.
  • Shielded heavy duty ram return springs.
  • Power unit is bearing mounted for horizontal movement on head channel.
  • Zero distortion, heavy duty structural steel frame.
  • Optional equipment below can be used on model 78022D press.
DIMENSIONS:
Ram Travel 5.875"
Min. Throat Height 5"
Max. Throat Height 38.25"
Throat Width 25"
Bed Height Adj. 8 x 4.75"
Between Uprights 5"
Between Bed Rails 6"
Base Width 34"
Base Depth 28"
Overall Height 70.625"
Shipping Weight 266 lbs.







Product image of 78013B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $1,379.00 Request Quote
9.) 78024A - Item No.
NORCO 78024A 25-TON AIR/HYDRAULIC SHOP PRESS


PRODUCT DETAILS

25-ton air/hydraulic shop press for straightening, bending, pressing, and removing or installing gears, bearings, and bushings.

FEATURES

  • Welded frame is fully assembled and tested.
  • Air/hydraulic foot pump supports hands-free operation.
  • Pair of bed plates included.
  • Self-retracting ram slides horizontally on the head channel.
  • Heavy-duty structural steel frame.
  • Liquid-filled gauge measures ram force and internal working pressure.

SPECS

Capacity25 tons
Ram travel8 in.
Minimum throat height6.75 in.
Maximum throat height40 in.
Throat width30.5 in.
Bed height adjustment8 x 4.75 in.
Between uprights6 in.
Between bed rails7 in.
Shipping weight430 lb

PRODUCT DIMENSIONS

Base width40 in.
Base depth28 in.
Overall height76.75 in.


(Air/Hydraulic)

Product image of 78024A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $2,951.27
10.) 78077A - Item No.
50 Ton Press W/Air/Hydraulic Foot Pump 13 1/4" Stroke


Product image of 78077A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: N/A Request Quote
11.) 78110C - Item No.
ELECTRIC/HYDRAULIC PRESS 100 TON


INTENDED USE:

Heavy duty use in truck garages and industrial work shops. Equipped with model 910019B electro/hydraulic foot pump and model 910036A 10’ hose.

FEATURES:
  • Welded frame, fully assembled, tested, and ready to put to work.
  • Equipped with high speed electro/hydraulic pump.
  • Safety overload system protects power unit.
  • Hand operated winch raises and lowers press bed.
  • Liquid filled gauge measures ram force in pounds and tons.
  • Self-retracting ram is bearing mounted for lateral movement on head channel.
DIMENSIONS:
Ram Travel 10.25"
Min. Throat Height 18.25"
Max. Throat Height 45.75"
Throat Width 40.25"
Bed Height Adj. 8 x 4.5"
Between Uprights 5.625"
Between Bed Rails 9"
Base Width 58"
Base Depth 40"
Overall Height 81"
Shipping Weight 1,777 lbs.







Product image of 78110C on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $13,982.00 Request Quote
Page 1 of 1 (Showing results 1 - 11 of 11)
