Tools and Equipment - Pumps

or browse the results below.

Page 1 of 1 (Showing results 1 - 21 of 21)
1.) 910003 - Item No.
Air Operated Hydraulic Pump


Product image of 910003 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
2.) 910009 - Item No.
Air/Hydraulic Pump


Product image of 910009 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
3.) 910130 - Item No.
10000 PSI AIR/HYD FOOT PUMP


Product image of 910130 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
4.) 910135 - Item No.
Air Operated Hydraulic Pump


Product image of 910135 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
5.) 925009 - Item No.
Steel Hand Pump 2,850 P.S.I.


Product image of 925009 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
6.) 925011 - Item No.
200 / 10,000 P.S.I. Two-Speed Lightweight Hand Pump


INTENDED USE:

For many applications including shop, agricultural, automotive/truck service needs and construction maintenance applications where high pressure pumps are required to activate cylinders rated as high as 55 ton capacity.

FEATURES:
  • 3/8 NPT hose connection on all pumps.
  • Internal pressure relief valves for overload protection.
  • External load release valve for single-acting cylinder operation.
  • Two-speed pump operation reduces handle strokes by as much as 78% over single speed pumps.
  • Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance and lightweight handling.
  • Handle lock for easy carrying.
  • Non-conductive fiberglass handle for operator safety.



Product image of 925011 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $403.29
7.) 925014 - Item No.

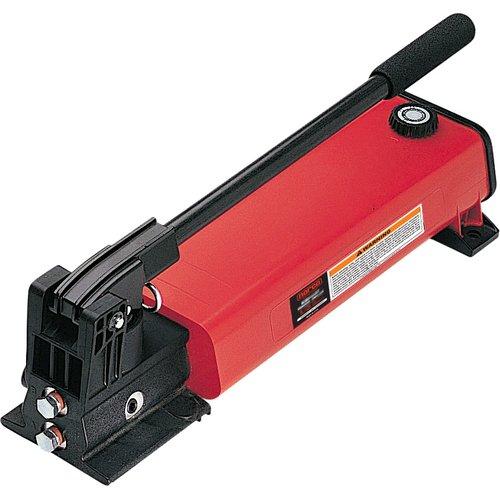

Norco 925014 Two-Speed Lightweight Hydraulic Hand Pump, 10,000 PSI


  • Applications: Two-speed lightweight hydraulic hand pump for shop, agricultural, automotive, truck-service, industrial, and construction applications.
  • Capacity: Operates high-pressure hydraulic cylinders rated up to 55 tons.
  • Pressure rating: 400 PSI first stage; 10,000 PSI second stage.
  • Two-speed operation: Reduces handle strokes by as much as 78% compared with a single-speed pump.
  • Usable oil capacity: 155 cu. in.
  • Oil displacement per stroke: 2.40 cu. in. first stage; 0.151 cu. in. second stage.
  • Maximum piston effort: 95 lb.
  • Valve configuration: Integral four-way valve for double-acting cylinders and external load-release valve for single-acting cylinders.
  • Overload protection: Internal pressure-relief valves.
  • Connection: 3/8 in. NPT hydraulic hose connection.
  • Construction: Glass-filled nylon reservoir and nylon-encapsulated aluminum pump base for corrosion resistance and lighter handling.
  • Handle: Non-conductive fiberglass handle with carrying and storage lock.
  • Dimensions: 21.75 in. L x 4.75 in. W x 9 in. H.
  • Handle arc: 50 degrees.
  • Pump weight: 22 lb.



Product image of 925014 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $1,304.71
8.) 910017B - Item No.

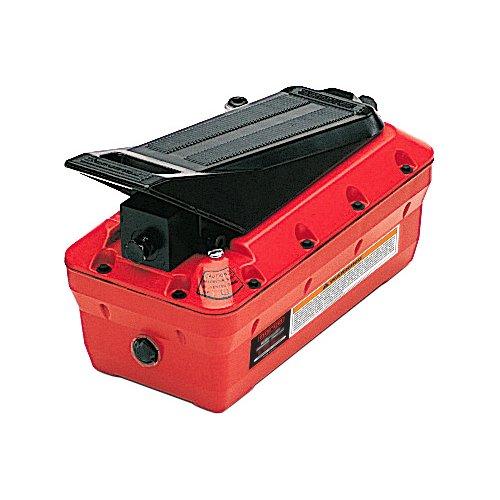

Norco 910017B 10,000 PSI Air/Hydraulic Foot Pump with Gauge


10,000 PSI maximum hydraulic pressure; Designed for use with single-acting hydraulic cylinders; Air motor requires only 80 PSI shop air to generate 10,000 PSI hydraulic pressure; Foot-operated treadle provides advance, hold, and retract functions; Built-in pressure gauge; 127 cu. in. oil capacity; Internal pressure relief valve helps prevent overload conditions; Air exhaust muffler reduces operating noise; Air and oil inlet filters help reduce contamination; Lightweight corrosion-resistant reservoir construction.


Product image of 910017B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $909.00
9.) 910018B - Item No.
NORCO 910018B 10,000-PSI 2-GALLON AIR/HYDRAULIC FOOT PUMP


PRODUCT DETAILS

Two-gallon air/hydraulic foot pump with steel reservoir for automotive, truck, industrial, and construction applications using single-acting cylinders.

FEATURES

  • Uses exhaust air to assist pump operation.
  • Air exhaust muffler supports quieter operation.
  • Air and oil inlet filters reduce contamination risk.
  • Foot pedal provides hands-free pumping and load release.
  • Internal pressure-relief valve supports overload protection.
  • Two-gallon steel reservoir.

SPECS

Hydraulic pressure10,000 psi
Required air pressure80 psi
Reservoir capacity2 gal.
Cylinder compatibilitySingle-acting
Reservoir materialSteel



Product image of 910018B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $1,245.99
10.) 910019B - Item No.
Electro/Hydraulic Pump 10,000 PSI


"Z" Series

NOTE: All electrical motors are warranted against defects in material and workmanship for one year from the date of end user’s purchase.

INTENDED USE:

For automotive / truck, industrial & construction jobs. Will handle single-acting cylinders up to 100 ton. The added convenience of an electro-hydraulic pump reduces pumping time and effort.

FEATURES:
  • Two-speed design reduces cycle times for improved productivity.
  • Single-phase 115 VAC, 1 hp induction motor will start at full load and stand up to continuous duty applications. Requires a steady power supply.
  • 10 foot pendant controls the motor operation.
  • Manual advance/retract valve control for single-acting cylinders.
  • LCD display provides a number of diagnostic and readout capabilities.



Product image of 910019B on HCRCnow.com.

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $4,417.00
11.) 910052A - Item No.

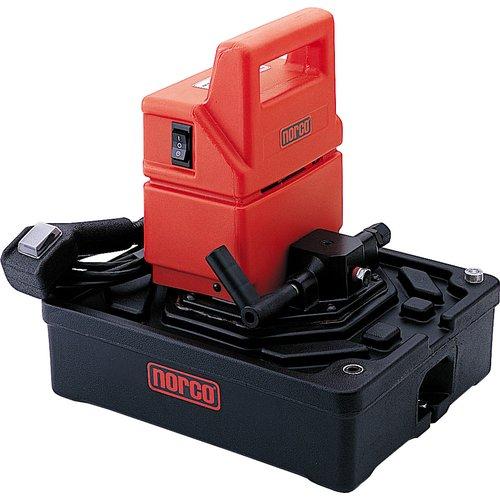

Norco 910052A 10,000 PSI Electro-Hydraulic Pump for Single-Acting Cylinders


  • Applications: Electro-hydraulic pump for automotive, truck, industrial, and construction jobs.
  • Compatibility: Operates single-acting cylinders rated up to 100 tons.
  • Hydraulic pressure: 200 PSI first stage; 10,000 PSI second stage.
  • Usable oil capacity: 238 cu. in.
  • Output flow: 200 cu. in. per minute first stage; 20 cu. in. per minute second stage.
  • Motor: 115 VAC, 1/2 hp motor capable of operation at voltages as low as 60 volts.
  • Current draw: 9.5 amps.
  • Operation: Two-speed motor design with three-way, two-position valve.
  • Valve function: Advance, hold, and retract.
  • Control: 10 ft. pendant supports operation away from the load.
  • Connection: 3/8-18 NPT hydraulic connection.
  • Sound level: 85 dBA.
  • Construction: Lightweight, compact design with high-strength molded shroud and integral carrying handle.
  • Motor protection: Shroud helps protect the motor from contamination.



Product image of 910052A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $3,349.45
12.) 910210B - Item No.
PUMP FOR 910005B


Product image of 910210B on HCRCnow.com.

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $280.64
13.) 925009A - Item No.

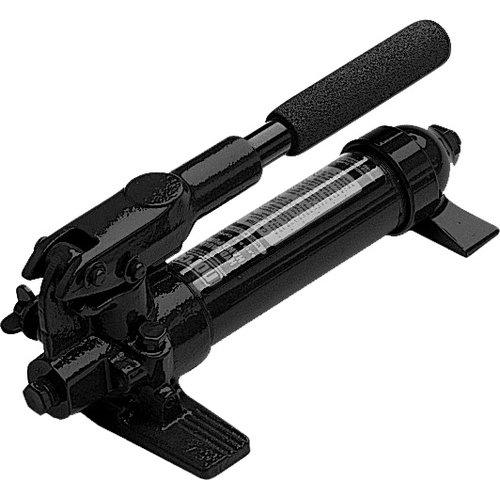

Norco 925009A 2,850 PSI Single-Speed Steel Hydraulic Hand Pump


  • Applications: Hydraulic hand pump for shop, agricultural, automotive, truck-service, and construction-maintenance applications.
  • Pump type: Single-speed steel hand pump.
  • Pressure rating: 2,850 PSI.
  • Usable oil capacity: 18 cu. in.
  • Oil displacement per stroke: 0.16 cu. in.
  • Maximum handle effort: 57 lb.
  • Piston stroke: 0.81 in.
  • Connection: 3/8 in. NPT.
  • Valving: External load-release valve for single-acting cylinder operation.
  • Protection: Internal pressure-relief valve protects against overload.
  • Dimensions: 13.38 in. L x 5.25 in. W x 5.25 in. H.
  • Handle arc: 40 degrees.
  • Pump weight: 11 lb.



Product image of 925009A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $524.00
14.) 925010A - Item No.

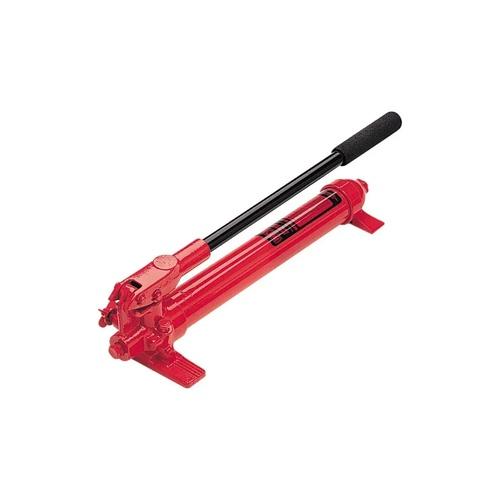

NORCO 925010A 10,000 PSI SINGLE-SPEED STEEL HAND PUMP


PRODUCT DETAILS

Single-speed steel hand pump rated at 10,000 psi, for shop, agricultural, automotive and truck service, and construction maintenance applications that need high pressure to activate cylinders rated up to 55 tons.

FEATURES

  • Steel construction.
  • 3/8 NPT hose connection.
  • Internal pressure relief valves provide overload protection.
  • External load release valve supports single-acting cylinder operation.

SPECS

Pressure rating10,000 psi
Usable oil capacity40 cu. in.
Oil displacement per stroke0.16 cu. in.
Maximum handle effort111 lb
Weight13 lb

PRODUCT DIMENSIONS

Length23 in.
Width5.25 in.
Height5.25 in.



Product image of 925010A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $325.00
15.) 925012A - Item No.
Norco 925012A 10,000 PSI Single-Speed Lightweight Hydraulic Hand Pump


  • Applications: High-pressure hand pump for shop, agricultural, automotive, truck-service, and construction-maintenance applications.
  • Compatibility: Activates hydraulic cylinders rated up to 55 tons.
  • Pump type: Single-speed, lightweight hand pump.
  • Pressure rating: 10,000 PSI.
  • Usable oil capacity: 55 cu. in.
  • Oil displacement per stroke: 0.151 cu. in.
  • Maximum handle effort: 85 lb.
  • Piston stroke: 1.00 in.
  • Connection: 3/8 in. NPT.
  • Valving: External load-release valve for single-acting cylinder operation.
  • Protection: Internal pressure-relief valve protects against overload.
  • Construction: Glass-filled nylon reservoir and nylon-encapsulated aluminum pump base provide corrosion resistance and lightweight handling.
  • Handle: Non-conductive fiberglass handle with carrying and storage lock.
  • Dimensions: 21.63 in. L x 4.75 in. W x 7 in. H.
  • Handle arc: 50 degrees.
  • Pump weight: 9 lb.



Product image of 925012A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $400.43
16.) 45101034 - Item No.
Air/Hydraulic Pump w/ Hand Control 2,500 PSI


Product image of 45101034 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
17.) 284058 - Item No.
AIR/HYDRAULIC FOOT PUMP 4,300 PSI


Product image of 284058 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
18.) 910130A - Item No.
NORCO 910130A 10,000-PSI AIR/HYDRAULIC FOOT PUMP


PRODUCT DETAILS

Air/hydraulic foot pump for automotive, truck, industrial, and construction applications using single-acting cylinders.

FEATURES

  • Uses exhaust air to assist pump operation.
  • Air exhaust muffler supports quieter operation.
  • Air and oil inlet filters reduce contamination risk.
  • Foot pedal provides hands-free pumping and load release.
  • Internal pressure-relief valve supports overload protection.
  • Aluminum reservoir.
  • Interchangeable poppet valves support controlled load lowering.

SPECS

Hydraulic pressure10,000 psi
Required air pressure80 psi
Reservoir capacity122 cu. in.
Cylinder compatibilitySingle-acting
Inlet and outlet thread1/4 in. NPT



Product image of 910130A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $409.00
19.) 910140 - Item No.
10000 PSI Air/Hydraulic Foot Pump & 2 Gallon Aluminum Reservoir


INTENDED USE:

For automotive / truck, industrial & construction jobs. The added convenience of an air motor reduces pumping time and effort to activate cylinders.

FEATURES:
  • Designed to utilize exhaust air to help power the pump, requiring only 80 p.s.i. air pressure to develop 10,000 p.s.i. hydraulic pressure.
  • Air exhaust muffler for quieter operation.
  • Air and oil inlet filters for reduced risk of damage from contamination.
  • Designed with durable light weight, corrosion resistant plastics.
  • Foot pedal provides hands free pumping and release of load.
  • Designed to be used with a single-acting cylinder.
  • Internal pressure relief valve for overload protection.
  • Two-gallon capacity aluminum reservoir body.
  • Comes with two different size poppit valves that can be quickly and easily installed. Poppit valves reduce the return flow of oil back to the pump’s reservoir providing a safer controlled lowering of load.
  • Equipped with a thick wall aluminum extruded reservoir.



Product image of 910140 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $666.14
20.) 910165 - Item No.

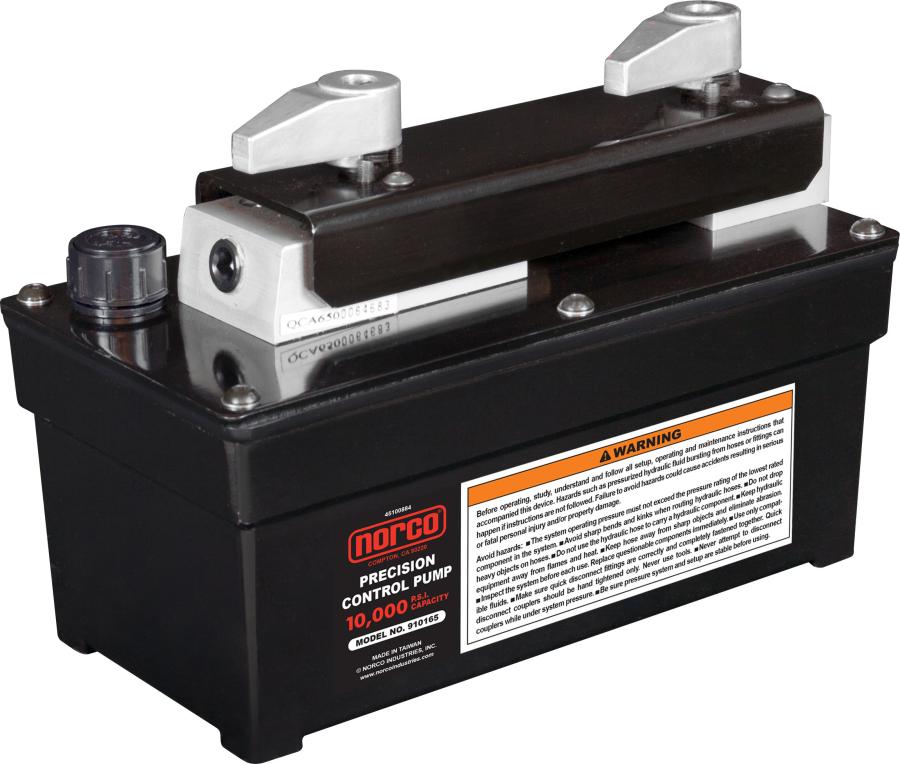

10,000 P.S.I. Air / Hydraulic Hand Operated Pump Without Gauge


Intended Use

  • For automotive, truck, industrial, and construction jobs where an air motor can reduce pumping time and effort.

Specifications

  • 10,000 PSI hydraulic pressure rating
  • 97 cu. in. usable oil capacity
  • Output flow: 80.5 cu. in./min. at no load; 12.8 cu. in./min. under load
  • 40 to 170 PSI air-pressure range
  • 24 SCFM air consumption
  • Advance/hold/retract valve function
  • 85 dBA sound level
  • Air connection: 1/4-18 NPT
  • Hydraulic connection: 3/8-18 NPT
  • Overall dimensions: 10.25 in. L x 5.125 in. W x 7 in. H
  • Weight: 17 lbs.

Features

  • Fingertip pressure and release control supports precise raising and lowering
  • Uses exhaust air to help power the pump; designed to develop 10,000 PSI hydraulic pressure with 90 PSI air input
  • Air-exhaust muffler supports quieter operation
  • Air and oil inlet filters reduce contamination risk
  • Lightweight, corrosion-resistant plastic construction
  • Designed for single-acting cylinders
  • Internal pressure-relief valve provides overload protection



Product image of 910165 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $418.00
21.) 925010 - Item No.
10,000 P.S.I. Single-Speed Steel Hand Pump


Product image of 925010 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
Page 1 of 1 (Showing results 1 - 21 of 21)

« Back to Tools and Equipment Categories
