For safe handling and positioning of automotive engines weighing up to 1,250 pounds.
KEY DIFFERENCE:

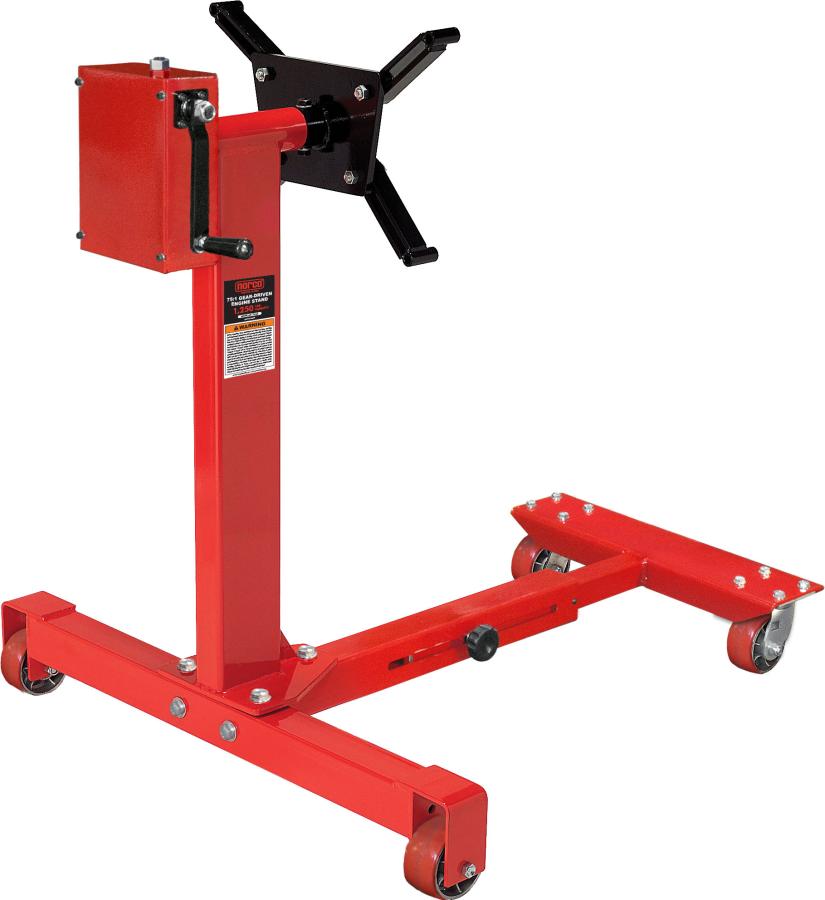

The 78155 is a dramatically-improved version of the 78125. Its 75:1 gear box makes turning the heaviest engines effortless! All of the optional engine mounting adapters will work on either model.
FEATURES:
75:1 ratio gearbox activated by hand crank easily turns the 360 degree rotating head to the desired work position.
Meets the ASME PASE performance and safety standards.
Fully adjustable engine mounting head.
Two rigid rear wheels. One of the two front swivel casters has a lock for maximum stability and support.
Polyurethane wheels provide protection for expensive tile and epoxy floors.
Telescopic base locks into any one of four different positions to extend the length of the stand for added stability when required.
4.)
78160 - Item No.

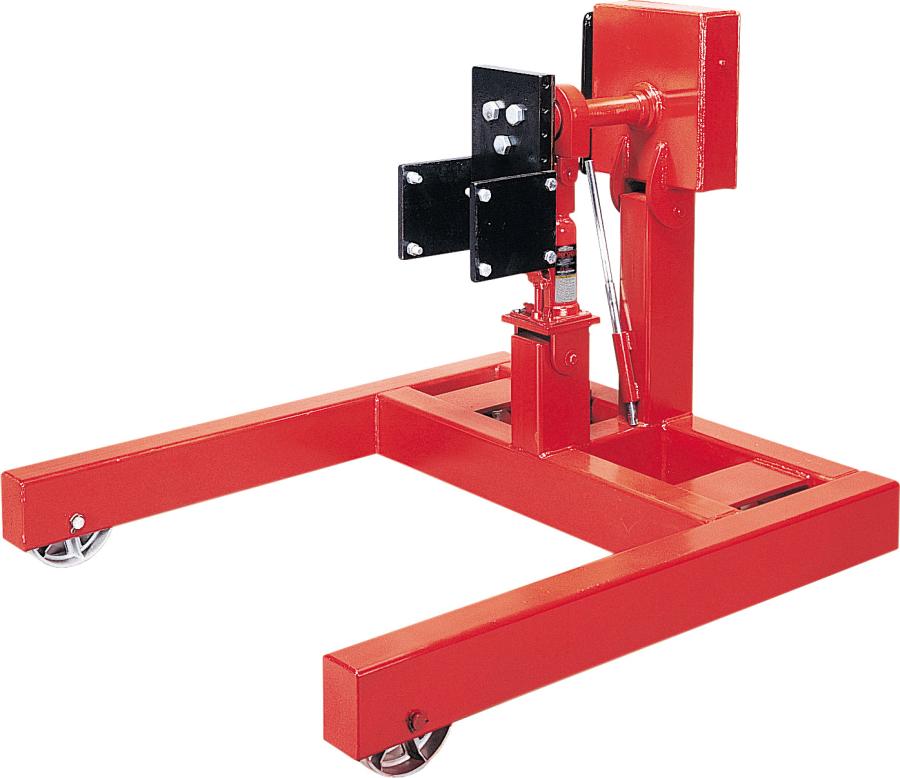

3 Ton Capacity Diesel Engine Stand
INTENDED USE:
For safe handling and positioning of most diesel engines.
FEATURES:
Mounting head tilts for engine clearance in 360 degree rotation.
95 to 1 worm gear drive and long handle provide easy engine rotation.
Floor lock keeps stand from moving during repairs.
Universal adapter included.
DIMENSIONS:
Length
54.25"
Width
50"
Height
45"
Front Wheel Dia.
7"
Rear Wheel Dia.
5.75"
Rotational Clearance From Mtg. Head to Ground
35.25" to 43.25"
Shipping Weight
631 lbs.
Optional engine and transmission mounting adapters:
78162: Detroit Diesel Engine Adapter for 53, 71, and 92 Series Engines. 78163: Cummins Engine Adapter for a Wide Range of Cummins Engines Including: NH, NTC, NTE, N14 855, V6 378; 504, 555, and V8 903; In-Line 6 KT 1150M. L10 (Now ISL). 78164: Caterpillar Engine Adapter for In-Line 6 models: 1673, 1674, 1693, 3306, & 3406 engines. V8 models: 1100, 3208, and 3408. 78165: IH and Ford Engine Adapter for International Harvester engines: DT-466 In-Line 6 DV-550, MV-404, MV-446, V304, V435, V392, 4-152, 4-194, 4-196, 9.0 liter V8. Ford 6.9L and 7.3L Engines. 78166: Mack Engine Adapter for the following In-Line Six Cylinder Engine Series: 672, 673, 675, 711. 78167: Detroit Allison Transmission Adapter for AT, MT, VS, VH, and V730. 78168: Detroit Diesel Engine Adapter for V6 and V8, Series 71 Engines. 78169: Caterpillar Engine Adapter for 3114, 3116, 3176 (Truck or Marine). 78170: Mack Engine Adapter for V8 1000, E6 and E7 In-Line 6 Cylinder Engines. 78172: Volvo Engine Adapter for TD67 (developed 1964), TD71 (developed 1984) Engines. 78173: Detroit Allison Transmission Adapter for HT740D, HT750, HT750CT, CLBT, CR/DR. 78174: Ford New Holland Adapter for 6.6L and 7.8L Engines. 78175: Cummins Engine Adapter for ISX15.
A twin-post design made for use with automobile, light-duty truck, and medium-duty truck engines and transmissions.
KEY DIFFERENCE:
The 78230 is a dramatically-improved version of the 78200. Its 75:1 gear box makes turning the heaviest engines effortless! All of the optional engine mounting adapters will work on either model.
FEATURES:
75:1 ratio gearbox activated by hand crank easily turns the 360 degree rotating head to the desired work position.
Meets the ASME PASE performance and safety standards.
Two rigid rear wheels. One of the two front swivel casters has a lock for maximum stability and support.
Polyurethane wheels provide protection for expensive tile and epoxy floors.
Includes two universal mounting plates, rotating shaft, eight fully adjustable arms and all the related mounting hardware.
Rotating shaft with mounting plate telescopes inside the post receiver for fine adjustment when mounting ends or sides of engines. Mounting plates can be adjusted 36-1/4” apart.
DIMENSIONS:
Height
42"
Width
Front
21.25"
Rear
40"
Length
From
38.25"
To
53.25"
Shipping Weight
315 lbs.
Optional adapters available:
78201: Ford 6.0L and 6.4L Engine Mounting Adapter 78202: Ford 6.2L Engine Mounting Adapter 78203: Ford 6.7L Engine Mounting Adapter 78208: Dodge Cummins 6.7L Engine Mounting Adapter
