Tools and Equipment - Lift Tables

or browse the results below.

Page 1 of 1 (Showing results 1 - 7 of 7)
1.) 72674 - Item No.
1,250 Lbs. Capacity Powertrain Lift / Table


PRODUCT DETAILS

The powertrain lift/table not only handles transmissions and fuel tanks, but also engines and transaxles, rear ends and leaf springs. Also serves as a work table where the components can be lowered to a stable and secure work height for repair.

FEATURES
  • Fingertip control for both pressure and release operations provides finer control of raising or lowering loads.
  • Safety overload system in the air/hydraulic pump prevents jack from being used beyond the load-limiting standard.
  • The pump can be removed from its holder and placed closer to the lift saddle, leaving hands free to accurately position the load.
  • Fully adjustable saddle with two ratchet tie downs secure the load to the saddle.
  • Four easy rolling caster wheels (locking rear caster wheels) provides stability and easy maneuvering in its lowered position.
  • The wheels, made from a phenolic resin, offer high impact resistance and are non-marking for protection of tile and epoxy floors.
  • The optional model 72508 Fuel Tank Saddle Adapter can be quickly and easily installed.
SPECS
Capacity 1,250 lbs
Saddle Title Fwd. 22°
Saddle Title Back 22°
Saddle Title Side +/-17°

DIMENSIONS
Low Lift Height 25.5"
High Lift Height 65"
Length 57"
Width 42.75"
Height 44.5"
Table Size 20.25" x 32.25"
Shipping Weight 410 lbs.







Product image of 72674 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $2,951.27 Request Quote
2.) 72675 - Item No.
Power Train Lift / Table 1,250 lbs


Product image of 72675 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
3.) 72850 - Item No.

Product image of 72850 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
4.) 72855 - Item No.
NORCO 72855 2,500 LBS. CAPACITY EV BATTERY LIFT / TABLE


PRODUCT DETAILS

The Norco 72855 is a 2,500 lb. capacity scissor-type EV battery lift table with an air/hydraulic foot pump. It provides 360-degree access to battery pack components and can double as a workbench at ergonomic heights.

FEATURES

  • Air/hydraulic foot pump with a metered valve for controlled lowering of heavy loads.
  • Built-in overload protection prevents operation above the rated load.
  • 5 ft. extension hose with quick-disconnect fittings lets you operate the pump from a distance.
  • Scissor design provides 360-degree access to components.
  • Two heavy-duty ratchet tie-downs secure the load.
  • Lockable rear casters for stability, with swivel casters for mobility.
  • Can double as a workbench at ergonomic heights.
  • Norco limited lifetime warranty covering defects in materials and workmanship.

SPECS

Capacity2,500 lb.
TypeScissor-type EV battery lift table
PumpAir/hydraulic foot pump
CastersFour 8 in. diameter swivel, rear casters lockable
Shipping weight570 lb

PRODUCT DIMENSIONS

Table height range35.5 in. to 77 in.
Table size36.25 in. x 42.5 in.
Overall length65 in.
Overall width36.25 in.
Base clearance height10 in.



Product image of 72855 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $5,733.49
5.) 72675A - Item No.
Power Train Lift / Table 1,250 lbs


Product image of 72675A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
6.) 72850A - Item No.
NORCO 72850A POWER TRAIN LIFT TABLE, 2500 LB CAPACITY


PRODUCT DETAILS

Power train lift and table designed for lifting, lowering, and supporting engines, transmissions, transaxle assemblies, rear ends, and large electric vehicle batteries, with a 2,500 lb capacity and a scissors lift design.

FEATURES

  • Handles engines, engine and transmission assemblies, transaxles, rear ends, and large electric vehicle batteries.
  • Scissors lift design provides 360-degree access to the load.
  • Air/hydraulic foot pump with a metered valve supports controlled lowering.
  • Safety overload system in the pump helps prevent use beyond the load limit.
  • Five-foot extension hose with quick-disconnect fittings stores in the lift base and allows pump operation from anywhere around the lift.
  • Two heavy-duty ratchet tie-downs are included to secure the load.
  • Four 8-inch swivel casters support maneuverability, and the rear wheels lock.
  • Lowers to a convenient work height so the table can serve as a work table for repairs.

SPECS

Capacity2,500 lb
Table size19 in. x 36 in.
Low lift height31 in.
High lift height78 in.
Handle height35 in.
Caster diameter8 in.
Shipping weight665 lb

PRODUCT DIMENSIONS

Length50 in.
Width33 in.

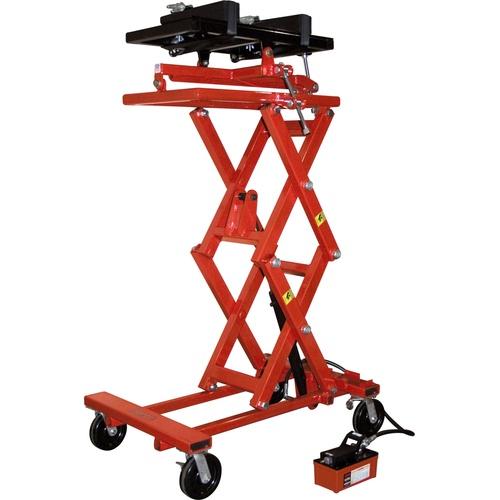

Product image of 72850A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $6,018.31
7.) 86002A - Item No.
48'' Mid Rise Lift


Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: Discontinued This product has been discontinued.
Page 1 of 1 (Showing results 1 - 7 of 7)
