Tools and Equipment - Transmission Jacks

or browse the results below.

Page 1 of 1 (Showing results 1 - 48 of 48)
1.) 72025 - Item No.
1 1/2 Ton Capacity Wide Chassis Opening Truck Transmission Jack


FEATURES:
  • Fully adjustable saddle with adjustable angle brackets to position the transmission.
  • Four 4" high risers handle transmissions with offset transfer cases.
  • Two heavy duty ratchet tie-downs conveniently secure the load to the lifting saddle.
  • Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard.
  • Full 360 degree rotating handle operates in any position.
  • Flash chromed ram inhibits rust from entering the hydraulic system.
  • Four full-swivel ball bearing 4" caster wheels for easy positioning.



Product image of 72025 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $2,496.99 Request Quote
2.) 72035 - Item No.
NORCO 72035 300 LB. TELESCOPIC UNDER HOIST AIR/HYDRAULIC CLUTCH JACK


PRODUCT DETAILS

The Norco 72035 is a 300 lb. telescopic under-hoist air/hydraulic clutch jack. It removes, installs and transports 14 in. and 15-1/2 in. heavy-duty clutches and flywheels on trucks raised on an in-ground or above-ground lift.

FEATURES

  • Saddle tilts with an integrated screw and machine handle so the clutch can sit horizontally to clear under a truck or vertically for installation and removal.
  • 2 in. and 1-3/4 in. diameter spline shafts rotate 360 degrees for clutch and engine alignment.
  • Air/hydraulic foot pump allows hands-free lifting.
  • Metered pump provides controlled lowering of the load.
  • Two-stage chrome-plated rams help keep rust out of the hydraulic system.
  • Polyurethane wheels help protect tile and epoxy floors.
  • U.S. Patent No. 7,171,807.

SPECS

Capacity300 lb.
TypeTelescopic under-hoist air/hydraulic clutch jack
Spline shafts2 in. and 1-3/4 in. diameter
WheelsPolyurethane
Shipping weight159 lb

PRODUCT DIMENSIONS

Low height38.25 in.
High height73.5 in.
Base size35 in. x 35 in.



Product image of 72035 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $2,276.99
3.) 72060 - Item No.
500 lb capacity Drive Shaft and DPF Filter removal and installation tool (Model 72050 with Bean Bag Saddle)


INTENDED USE:

Also allows for the safe and secure removal and installation of DPFs & drive shafts.
Weight: 203 lbs.

FEATURES:
  • Wide chassis with open front provides:
    - Wider opening for saddle and transmission to come lower to the ground for easy removal.
    - Efficient load distribution and stability.
    - Easy access to saddle tilt knobs.
  • Fully adjustable universal saddle with adjustable corner brackets and safety chain.
  • Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard.
  • Full 360 degree rotating pump handle operates in any position.
  • Flash chromed ram inhibits rust from entering the hydraulic system.
  • Four full-swivel ball bearing caster wheels for easy positioning.
  • Wide chassis for efficient load distribution and stability.
  • Unique universal bean bag saddle eliminates the need for individual DPF transmission adapters.



Product image of 72060 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $1,050.99

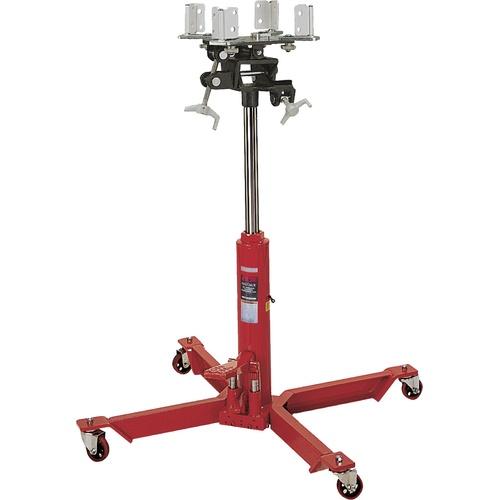

4.) 72550 - Item No.
Telescopic Transmission Jack 1/2 Ton (Double Pump)


Product image of 72550 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
5.) 72600 - Item No.
Telescopic Transmission Jack 1/2 Ton


Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
6.) 72605 - Item No.
Engine Handler

 Price: Discontinued This product has been discontinued.
7.) 72650 - Item No.
Telescopic Transmission Jack 1/2 Ton

 Price: Discontinued This product has been discontinued.

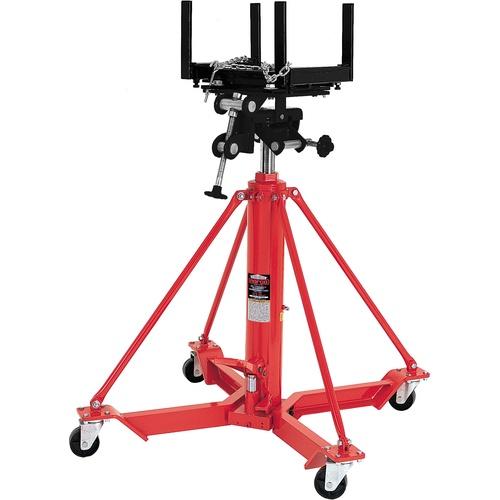

8.) 72700 - Item No.
Underhoist Truck Transmission Jack 1 Ton


Product image of 72700 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
9.) 72701 - Item No.
Transmission Jack 1 Ton


Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
10.) 72000A - Item No.
Truck Transmission Jack 1-1/2 Ton


Product image of 72000A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
11.) 72000B - Item No.
Truck Transmission Jack 1-1/2 Ton


Product image of 72000B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
12.) 72000C - Item No.
Truck Transmission Jack 1-1/2 Ton


Product image of 72000C on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
13.) 72000D - Item No.
Truck Transmission Jack 1-1/2 Ton (Made in USA)


Product image of 72000D on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
14.) 72000E - Item No.
NORCO 72000E 1-1/2 TON TRANSMISSION JACK - U.S.A.


PRODUCT DETAILS

The Norco 72000E is a 1-1/2 ton hydraulic transmission jack, made in the USA, with a wide chassis and open front that gives extra room around the saddle and transmission.

FEATURES

  • Wide chassis with open front provides a wider opening for the saddle and transmission.
  • Heavy-duty chain with a chain tensioner secures the load to the saddle.
  • Full 360-degree rotating handle operates in any position.
  • Flash-chromed ram inhibits rust from entering the hydraulic system.

SPECS

Capacity1-1/2 tons
TypeHydraulic transmission jack
Saddle size10.25 in. x 15.25 in.
Shipping weight310 lb

PRODUCT DIMENSIONS

Low height7.75 in.
High height36.5 in.
Overall length45 in.
Overall width28 in.



Product image of 72000E on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $2,592.99
15.) 72000S - Item No.
Truck Transmission Jack 1-1/2 Ton


Product image of 72000S on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
16.) 72005S - Item No.
Transmission Jack 1 Ton


Product image of 72005S on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
17.) 72030B - Item No.
NORCO 72030B CLUTCH JACK 300 LB. CAPACITY (INCLUDES 2 SPLINE SHAFTS)


PRODUCT DETAILS

The Norco 72030B is a floor-type hydraulic clutch jack with a 300 lb. capacity. It includes two spline shafts and uses two-stage chromed rams.

FEATURES

  • Two-stage flash-chromed rams inhibit rust from entering the hydraulic system.
  • Polyurethane wheels help protect tile and epoxy floors.
  • Includes 2 spline shafts.

SPECS

Capacity300 lb.
TypeFloor-type hydraulic clutch jack
Included2 spline shafts
Shipping weight148 lb

PRODUCT DIMENSIONS

Low height11.5 in.
High height37.75 in.
Overall length35 in.
Overall width26.5 in.



Product image of 72030B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $872.99
18.) 72050A - Item No.
Transmission Jack 1/2 Ton


Product image of 72050A on HCRCnow.com.
Price: Discontinued This product has been discontinued.
19.) 72050B - Item No.
Transmission Jack 1/2 Ton


Product image of 72050B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
20.) 72050C - Item No.
Transmission Jack 1/2 Ton


Product image of 72050C on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
21.) 72050D - Item No.
Transmission Jack 1/2 Ton


Product image of 72050D on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
22.) 72050E - Item No.
NORCO 72050E 1/2 TON TRANSMISSION JACK


PRODUCT DETAILS

The Norco 72050E is a 1/2 ton hydraulic transmission jack with a fully adjustable universal saddle and swivel casters for positioning under a vehicle.

FEATURES

  • Fully adjustable universal saddle with adjustable corner brackets and safety chain.
  • Full 360-degree rotating pump handle operates in any position.
  • Four full-swivel ball bearing caster wheels for easy positioning.

SPECS

Capacity1/2 ton
TypeHydraulic transmission jack
Saddle size7.125 in. x 8.125 in.
Shipping weight152 lb

PRODUCT DIMENSIONS

Low height7.375 in.
High height32.125 in.
Overall length36 in.
Overall width26.5 in.



Product image of 72050E on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $725.99
23.) 72400A - Item No.
Air Operated Hydraulic Transmission Jack 1/2 Ton


Product image of 72400A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
24.) 72400B - Item No.
Air Operated Hydraulic Transmission Jack 1/2 Ton


Product image of 72400B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
25.) 72450A - Item No.
Air Operated Hydraulic Transmission Jack 1/2 Ton


Product image of 72450A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
26.) 72450B - Item No.
NORCO 72450B 1/2 TON AIR/HYD. TELESCOPIC TRANS. JACK - FASTJACK


PRODUCT DETAILS

The Norco 72450B is a 1/2 ton telescopic air/hydraulic transmission jack with the FASTJACK feature and a foot pump for hands-free operation. It is designed for lifting transmissions in under-hoist applications.

FEATURES

  • Air/hydraulic foot pump provides hands-free operation and easy lifting.
  • Metered pump valve provides safe lowering of the load.
  • Wide base with four swivel ball bearing caster wheels, 4 in. diameter polyurethane.
  • Polyurethane wheels help protect tile and epoxy floors.

SPECS

Capacity1/2 ton
TypeTelescopic air/hydraulic transmission jack
Wheels4 in. diameter polyurethane, swivel
Shipping weight175 lb

PRODUCT DIMENSIONS

Low height36 in.
High height75 in.
Base size34 in. x 34 in.



Product image of 72450B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $1,868.99
27.) 72475A - Item No.
NORCO 72475A 3/4 TON AIR/HYD. TELESCOPIC TRANS. JACK - FASTJACK


PRODUCT DETAILS

The Norco 72475A is a 3/4 ton telescopic air/hydraulic transmission jack with the FASTJACK feature. It comes with a large saddle plate and adjustable locating bars for secure transmission lifting.

FEATURES

  • Larger 10-1/4 in. x 15-1/8 in. saddle plate with four adjustable L-shaped locating bars.
  • Wheels are made from phenolic resin, offer high impact resistance and are non-marking.
  • Wide base with four swivel ball bearing caster wheels, 4 in. diameter.

SPECS

Capacity3/4 ton
TypeTelescopic air/hydraulic transmission jack
Saddle plate size10.25 in. x 15.125 in.
Wheels4 in. diameter phenolic, swivel
Shipping weight196 lb

PRODUCT DIMENSIONS

Low height36.5 in.
High height75.25 in.
Base size36 in. x 36 in.



Product image of 72475A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $2,322.99
28.) 72500A - Item No.
Telescopic Transmission Jack 1/2 Ton (Single Pump)


Product image of 72500A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
29.) 72500B - Item No.
Telescopic Transmission Jack 1/2 Ton (Single Pump)


Product image of 72500B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
30.) 72500C - Item No.
Telescopic Transmission Jack 1/2 Ton (Single Pump)


Product image of 72500C on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
31.) 72500D - Item No.
Telescopic Transmission Jack 1/2 Ton (Single Pump)


Product image of 72500D on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.

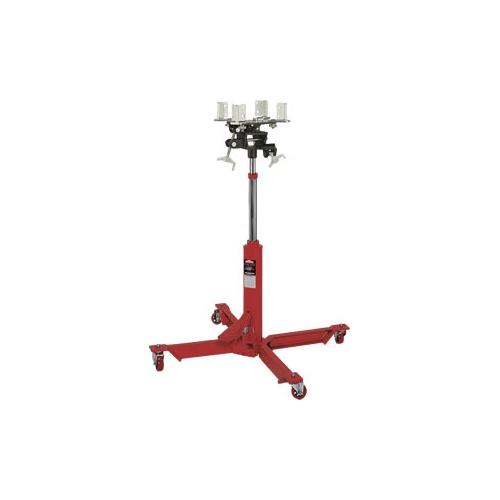

32.) 72500E - Item No.
NORCO 72500E 1/2 TON CAPACITY TELESCOPIC UNDER HOIST SINGLE PUMP TRANSMISSION JACK


PRODUCT DETAILS

Half-ton telescopic under hoist transmission jack with a single-pump design, suited to shops that service a variety of vehicles.

FEATURES

  • Fully adjustable universal saddle with hand-adjustable corner brackets and safety chain.
  • Safety overload system prevents use beyond the load-limiting standard.
  • Foot-operated pump and lowering pedals leave both hands free to position the saddle.
  • Two-stage flash-chromed rams inhibit rust from entering the hydraulic system.

SPECS

Capacity1/2 ton (1,000 lb)
Low lift height35 in.
High lift height72 in.
Shipping weight176 lb

PRODUCT DIMENSIONS

Base size34 in. x 37 in.



Product image of 72500E on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $1,274.99
33.) 72550A - Item No.
Telescopic Transmission Jack 1/2 Ton (Double Pump)


Product image of 72550A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
34.) 72550B - Item No.
NORCO 72550B 1/2 TON CAPACITY TELESCOPIC UNDER HOIST DOUBLE PUMP TRANSMISSION JACK


PRODUCT DETAILS

Half-ton telescopic under hoist transmission jack with a double-pump design, built for removing, installing, and transporting transmissions and transfer cases on passenger cars, vans, and light trucks raised on a lift.

FEATURES

  • Double-pump design rises twice as fast as the 72500E with no load or loads up to 400 pounds.
  • Matches the 72500E rising speed for loads between 400 and 1,000 pounds.
  • Fully adjustable universal saddle with hand-adjustable corner brackets and safety chain.
  • Safety overload system prevents use beyond the load-limiting standard.
  • Foot-operated pump and lowering pedals leave both hands free to position the saddle.
  • Two-stage flash-chromed rams inhibit rust from entering the hydraulic system.
  • Four 4-inch swivel ball bearing casters with polyurethane wheels protect tile and epoxy floors.

SPECS

Capacity1/2 ton (1,000 lb)
Low lift height35 in.
High lift height72 in.
Shipping weight178 lb

PRODUCT DIMENSIONS

Base size34 in. x 37 in.



Product image of 72550B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $1,300.14
35.) 72700A - Item No.
NORCO 72700A 1 TON UNDER HOIST TRUCK TRANSMISSION JACK


PRODUCT DETAILS

One-ton under hoist transmission jack designed for removing, installing, and transporting heavy-duty truck transmissions raised on an in-ground or above-ground lift.

FEATURES

  • Fully adjustable universal saddle with adjustable corner brackets and safety chain.
  • Safety overload system prevents use beyond the load-limiting standard.
  • 2-inch diameter flash-chromed single-stage ram adds stability throughout the lift range.
  • Foot-operated pump and lowering pedals leave both hands free to position the saddle.
  • Wide base with four 3-7/8-inch swivel ball bearing casters supports stability and maneuvering.

SPECS

Capacity1 ton
Low lift height45.75 in.
High lift height74.25 in.
Saddle tilt, forward45 degrees
Saddle tilt, back24 degrees
Saddle tilt, side22 degrees each way
Shipping weight292 lb

PRODUCT DIMENSIONS

Base size38 in. x 38 in.



Product image of 72700A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $1,872.86
36.) 72701A - Item No.
NORCO 72701A 1 TON UNDER HOIST, AIR/HYD. TRUCK TRANS. JACK


PRODUCT DETAILS

The Norco 72701A is a 1-ton under-hoist air/hydraulic truck transmission jack. A foot-operated air/hydraulic pump and a 2 in. single-stage ram give stable, hands-free lifting.

FEATURES

  • Air/hydraulic foot pump provides hands-free operation and easy lifting.
  • Metered pump valve provides safe lowering of the load.
  • Heavy-duty chain with a chain tensioner secures the load to the saddle.
  • 2 in. diameter flash-chromed single-stage ram adds stability throughout the lift range.

SPECS

Capacity1 ton
TypeUnder-hoist air/hydraulic truck transmission jack
Ram diameter2 in.
Shipping weight273 lb

PRODUCT DIMENSIONS

Low height41.25 in.
High height69.375 in.
Base size37.5 in. x 38 in.



Product image of 72701A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $2,350.14
37.) 72850A - Item No.
NORCO 72850A POWER TRAIN LIFT TABLE, 2500 LB CAPACITY


PRODUCT DETAILS

Power train lift and table designed for lifting, lowering, and supporting engines, transmissions, transaxle assemblies, rear ends, and large electric vehicle batteries, with a 2,500 lb capacity and a scissors lift design.

FEATURES

  • Handles engines, engine and transmission assemblies, transaxles, rear ends, and large electric vehicle batteries.
  • Scissors lift design provides 360-degree access to the load.
  • Air/hydraulic foot pump with a metered valve supports controlled lowering.
  • Safety overload system in the pump helps prevent use beyond the load limit.
  • Five-foot extension hose with quick-disconnect fittings stores in the lift base and allows pump operation from anywhere around the lift.
  • Two heavy-duty ratchet tie-downs are included to secure the load.
  • Four 8-inch swivel casters support maneuverability, and the rear wheels lock.
  • Lowers to a convenient work height so the table can serve as a work table for repairs.

SPECS

Capacity2,500 lb
Table size19 in. x 36 in.
Low lift height31 in.
High lift height78 in.
Handle height35 in.
Caster diameter8 in.
Shipping weight665 lb

PRODUCT DIMENSIONS

Length50 in.
Width33 in.



Product image of 72850A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $6,018.31
38.) 72000DI - Item No.
Truck Transmission Jack 1-1/2 Ton


Product image of 72000DI on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
39.) 72000Ei - Item No.
NORCO 72000EI 1-1/2-TON OPEN-FRONT TRANSMISSION JACK


PRODUCT DETAILS

Imported 1-1/2-ton transmission jack for heavy-truck transmissions in dealerships, maintenance facilities, and heavy-duty transmission repair centers.

FEATURES

  • Wide open-front chassis supports low removal and stable load distribution.
  • Fully adjustable universal saddle includes adjustable positioning arms.
  • Heavy-duty chain and tensioner secure the load.
  • Safety overload system protects against operation beyond the ASME/PASE load-limiting standard.
  • Full 360-degree rotating handle operates in any position.
  • Four full-swivel ball-bearing casters support positioning.

SPECS

Capacity1-1/2 tons
Low lift height7.75 in.
High lift height36.5 in.
Saddle size10.25 x 15.25 in.
Shipping weight310 lb

PRODUCT DIMENSIONS

Length45 in.
Width28 in.



Product image of 72000Ei on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $1,856.99
40.) 72450AB - Item No.
Air Operated Hydraulic Transmission Jack 1/2 Ton


Product image of 72450AB on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
41.) YHUJ-800A - Item No.
Hydraulic Transmission Jack 0.8 Ton


Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
42.) YHUJ-800B - Item No.
Hydraulic Transmission Jack 0.8 Ton


Product image of YHUJ-800B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
43.) YHUJ-800C - Item No.
Hydraulic Transmission Jack 0.8 Ton (Made in Japan)


Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
44.) 72475, Rev. B - Item No.
Air/Hydraulic Telescopic Transmission Jack 3/4 Ton


Product image of 72475, Rev. B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
45.) 72005 (Made in Japan) - Item No.
Transmission Jack 0.8 Ton (Made in Japan)


Product image of 72005 (Made in Japan) on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
46.) 72500 (Made in Japan) - Item No.
Transmission Jack 1/2 Ton


Product image of 72500 (Made in Japan) on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
47.) 72005 (Made in Taiwan) - Item No.
Low Profile Transmission Jack 1 Ton (Made in Taiwan)


Product image of 72005 (Made in Taiwan) on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
48.) 72500 (Made in Taiwan) - Item No.
Transmission Jack 1/2 Ton


Product image of 72500 (Made in Taiwan) on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
Page 1 of 1 (Showing results 1 - 48 of 48)

« Back to Tools and Equipment Categories
