Tools and Equipment - Floor Jacks

PRODUCT DETAILS

An economical 3-ton floor jack designed for a variety of automotive shop uses and roadside service calls.

FEATURES

• Double-pump piston raises the saddle to the load quickly.
• Safety bypass and overload systems help prevent cylinder damage and use beyond the ASME/PASE load-limiting standard.
• Grab handles assist with positioning and carrying.
• Durable nylon wheels help protect epoxy and tile floors.
• Accepts the optional Norco 71303 3-inch saddle extension adapter.

SPECS

PRODUCT DIMENSIONS

PRODUCT DETAILS

The Norco 72035 is a 300 lb. telescopic under-hoist air/hydraulic clutch jack. It removes, installs and transports 14 in. and 15-1/2 in. heavy-duty clutches and flywheels on trucks raised on an in-ground or above-ground lift.

FEATURES

• Saddle tilts with an integrated screw and machine handle so the clutch can sit horizontally to clear under a truck or vertically for installation and removal.
• 2 in. and 1-3/4 in. diameter spline shafts rotate 360 degrees for clutch and engine alignment.
• Air/hydraulic foot pump allows hands-free lifting.
• Metered pump provides controlled lowering of the load.
• Two-stage chrome-plated rams help keep rust out of the hydraulic system.
• Polyurethane wheels help protect tile and epoxy floors.
• U.S. Patent No. 7,171,807.

SPECS

PRODUCT DIMENSIONS

PRODUCT DETAILS

The Norco 72212 is a four-stage telescopic air/hydraulic floor jack rated 55 tons in the first stage, with 37, 23 and 12 ton ratings in the later stages. It is intended for heavy-duty truck, rail, bus, agricultural and construction equipment.

FEATURES

• Long T-handle helps position the jack under vehicles with low overhang.
• Handle lock holds the handle vertical, at 45 degrees or horizontal.
• Overload systems prevent cylinder damage and keep the jack within the ASME/PASE load-limiting standard.
• Rust-inhibitive coating on the rams.
• Integrated filter protects the air motor.
• Double-acting pump raises the ram faster.
• Suspension-loaded axle helps prevent wheel damage.
• Vacuum-operated ram retraction means no manual lowering.
• Emergency stop button at the top of the handle halts operation immediately.
• Includes a removable 2-3/4 in. saddle, 2-9/16 in. and 5-7/8 in. extensions, and an extension holder.

SPECS

PRODUCT DIMENSIONS

PRODUCT DETAILS

The Norco 72225 is a two-stage telescopic air/hydraulic floor jack rated 50 tons and 25 tons by stage. It is intended for heavy-duty truck, rail, bus, agricultural and construction equipment.

FEATURES

• Long T-handle helps position the jack under vehicles with low overhang.
• Handle lock holds the handle vertical, at 45 degrees or horizontal.
• Overload systems prevent cylinder damage and keep the jack within the ASME/PASE load-limiting standard.
• Rust-inhibitive coating on the rams.
• Integrated filter protects the air motor.
• Double-acting pump raises the ram faster.
• Suspension-loaded axle helps prevent wheel damage.
• Vacuum-operated ram retraction means no manual lowering.
• Emergency stop button at the top of the handle halts operation immediately.
• Includes a removable 2-3/4 in. saddle, 2-9/16 in. and 5-7/8 in. extensions, and an extension holder.

SPECS

PRODUCT DIMENSIONS

PRODUCT DETAILS

The Norco 72255 is a two-stage telescopic air/hydraulic floor jack rated 88 tons and 55 tons by stage. It is intended for heavy-duty truck, rail, bus, agricultural and construction equipment.

FEATURES

• Long T-handle helps position the jack under vehicles with low overhang.
• Handle lock holds the handle vertical, at 45 degrees or horizontal.
• Overload systems prevent cylinder damage and keep the jack within the ASME/PASE load-limiting standard.
• Rust-inhibitive coating on the rams.
• Integrated filter protects the air motor.
• Double-acting pump raises the ram faster.
• Suspension-loaded axle helps prevent wheel damage.
• Vacuum-operated ram retraction means no manual lowering.
• Emergency stop button at the top of the handle halts operation immediately.
• Includes a removable 2-3/4 in. saddle, 2-9/16 in. and 5-7/8 in. extensions, and an extension holder.

SPECS

PRODUCT DIMENSIONS

PRODUCT DETAILS

The Norco 71000D is a 10-ton floor jack with the FASTJACK mechanism, which raises the saddle to the load in one pump of the T handle. It is built for heavy-duty truck, construction and agricultural equipment maintenance.

FEATURES

• FASTJACK mechanism raises the lifting saddle to the load in one pump of the T handle.
• Locking release lever holds the handle vertical, at 45 degrees or horizontal and lowers the load.
• Chromed ram and dust seals guard against hydraulic contamination.
• Safety bypass and overload systems prevent cylinder damage and keep the jack within the ASME/PASE load-limiting standard.
• U.S. Patent No. 7,055,801 B2.

SPECS

PRODUCT DIMENSIONS

PRODUCT DETAILS

The Norco 71100A is a 10-ton air/hydraulic floor jack with the FASTJACK feature, which raises the saddle to the load with one pump of the T handle. It is built for heavy-duty truck, construction and agricultural equipment maintenance garages.

FEATURES

• FASTJACK feature raises the lifting saddle to the load with one pump of the T handle.
• Chrome-plated ram and dust seals help keep contaminants out of the hydraulic system.
• Safety bypass and overload systems protect the cylinder and keep the jack within the ASME/PASE load-limiting standard.
• Air pump models can also be operated manually.
• Locking release lever holds the handle in the vertical, 45-degree or horizontal position to lower the load.

SPECS

PRODUCT DIMENSIONS

PRODUCT DETAILS

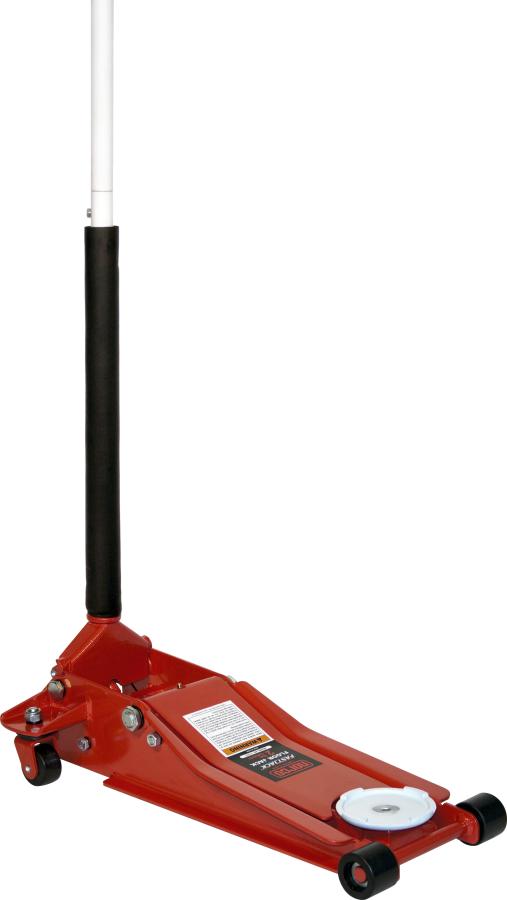

The Norco 71233B is a 2-ton double-pump floor jack designed as an economical jack for general automotive shop work. Its very low starting height reaches under low-clearance vehicles.

FEATURES

• Very low starting height for low-clearance vehicles.
• Safety bypass and overload systems protect the cylinder and keep the jack within the ASME/PASE load-limiting standard.
• Heavy-duty chassis.
• Two-piece handle for easier shipping and storage.
• U-joint release mechanism for more precise lowering control.
• Foam handle sleeve included to protect vehicles.
• Dual pump piston reaches maximum height in 8-1/2 strokes.
• Optional 3 in. saddle extension adapter (model 71303, sold separately).

SPECS

PRODUCT DIMENSIONS

PRODUCT DETAILS

Five-ton FASTJACK floor jack for truck fleets, truck and farm equipment dealers, and bus company garages.

FEATURES

• FASTJACK mechanism raises the saddle to the load with one pump of the T-handle.
• Locking release lever secures the handle in the vertical, 45-degree, or horizontal position for controlled lowering.
• Chromed ram and dust seals prevent hydraulic contamination.
• Safety bypass and overload systems protect the hydraulic block and prevent use beyond the load-limiting standard.

SPECS

PRODUCT DIMENSIONS
