Tools and Equipment - Air Jacks / End Lifts / Bumper Jacks

or browse the results below.

Page 1 of 1 (Showing results 1 - 12 of 12)
1.) 82920 - Item No.
Air Lift Jack, End Lift 2-1/2 Ton


Product image of 82920 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
2.) 82925 - Item No.
Air Lift Jack 2-1/2 Ton


Product image of 82925 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
3.) 82950 - Item No.
Portable Air Lift Jack 5 Ton


Product image of 82950 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
4.) 82990 - Item No.
Portable Air Lift Jack 10 Ton, Made in the USA


Product image of 82990 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
5.) 82992 - Item No.
15 Ton Capacity Portable Air Lift Jack


INTENDED USE:

Garages / repair shops of truck, farm equipment, construction equipment and bus companies. May be used in pairs. Ideal for crowded conditions that require single point contact.

FEATURES:
  • Three-way heavy duty air valve provides fine control when lifting or lowering a load.
  • Extension tubes and detent pins offer multiple lifting heights.
  • Unit easily maneuvered on two 8” diameter rubber tread wheels.
  • Removable handle and 8’ air hose for remote safe positioning and operation.
  • Lifting saddle with locating lugs.
DIMENSIONS:
Low Lift Height 18.125"
High Lift Height 51.375"
Stroke 11.25"
Length 59.5"
Width 15"
Height 36.875"
Shipping Weight 240 lbs.







Product image of 82992 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $1,785.67 Request Quote
6.) 82995 - Item No.
8 1/2 Ton Capacity Long Reach Air Lift Jack


INTENDED USE:

For truck, bus, farm equipment and motor home applications where a long reach jack is required to lift at the vehicle bumper, frame or front axle.

FEATURES:
  • Three-way heavy duty air valve provides fine control when lifting or lowering a vehicle.
  • Automatic safety lock engages in five different height positions independent of air pressure.
  • Includes extension tubes and adjustment pins for added height requirements.
  • Two 10” diameter solid wheels are strategically located for better positioning and maneuverability.
  • Scissors action frame design with four 5” diameter steel wheels provides maximum stability during lifting and lowering.
  • Large air cylinder requires only 100 p.s.i. air pressure to lift 5 ton capacity.
  • Over four feet of reach between cylinder and center line of lifting saddle.
DIMENSIONS:
Low Lift Height 10"
High Lift Height 50"
Length 80.5"
Width 38"
Height 53.75"
Saddle Reach 50"
Shipping Weight 935 lbs.







Product image of 82995 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $8,064.00 Request Quote
7.) 82999 - Item No.
10 Ton Capacity Air Lift Jack


INTENDED USE:

Truck and farm equipment dealer garages, heavy duty construction repair shops and bus company garages.

FEATURES:
  • Three-way heavy duty air valve provides fine control when lifting or lowering a vehicle.
  • Automatic safety lock engages in six different height positions independent of air pressure.
  • Designed for lifting entire front or rear of a vehicle.
  • Front swivel caster wheel and two 12-1/4” diameter pneumatic rear tires provide easy maneuverability.
  • Adjustable lifting saddles can be raised and extended to desired position.
DIMENSIONS:
Low Lift Height 12.5"
High Lift Height 50"
Length 40.5"
Width 35.5"
Height 65.75"
Saddle Reach 14.75"
Shipping Weight 638 lbs.

  • NOTE: Additional Freight Fees apply to deliver to residential areas.
  • NOTE: Additional Freight Fees apply if a liftgate is required to unload the freight.
  • NOTE: The receiver will need either a loading dock or a forklift onsite to unload the freight, otherwise they will need liftgate delivery services.



Product image of 82999 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $5,459.00 Request Quote
8.) 82990A - Item No.
Portable Air Lift Jack 10 Ton, Made in the USA


Product image of 82990A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
9.) 82990B - Item No.
Portable Air Lift Jack 10 Ton, IMPORT


Product image of 82990B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
10.) 82990C - Item No.
NORCO 82990C 10 TON PORTABLE AIR LIFT JACK


PRODUCT DETAILS

The Norco 82990C is a 10-ton portable air lift jack that raises a load with compressed air. It rolls on two large rubber-tread wheels and is built for vehicle and equipment service.

FEATURES

  • Three-way heavy-duty air valve provides fine control when lifting or lowering a load.
  • Easily maneuvered on two 8 in. diameter rubber-tread wheels.
  • Lifting saddle with locating lugs.

SPECS

Capacity10 tons at 172 psi
TypePortable air lift jack
Stroke11.5 in.
Wheels8 in. diameter rubber tread
Shipping weight178 lb

PRODUCT DIMENSIONS

Low lift height17.75 in.
High lift height49.375 in.
Overall length58 in.
Overall width13.625 in.



Product image of 82990C on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $1,178.00
11.) 82999I - Item No.
Air Lift Jack, End Lift 10 Ton


Product image of 82999I on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
12.) 82999Ai - Item No.

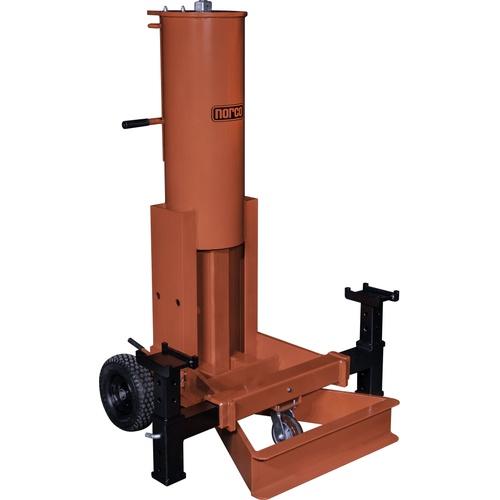

NORCO 82999AI 10 TON IMPORTED AIR LIFT JACK


PRODUCT DETAILS

Imported 10-ton air lift jack designed to lift the entire front or rear of trucks, buses, and farm equipment in dealer garages, construction repair shops, and bus company garages.

FEATURES

  • Three-way heavy-duty air valve provides fine control when lifting or lowering.
  • Automatic safety lock engages at six height positions independent of air pressure.
  • Designed to lift the entire front or rear of a vehicle.
  • Front swivel caster and two 12-1/4-inch pneumatic rear tires support maneuverability.
  • Adjustable lifting saddles can be raised and extended to the desired position.

SPECS

Capacity10 tons
Low lift height12.25 in.
High lift height49.5 in.
Saddle reach13.5 in.
Shipping weight817 lb

PRODUCT DIMENSIONS

Length39.75 in.
Width34 in.
Height66.25 in.



Product image of 82999Ai on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $5,285.99
Page 1 of 1 (Showing results 1 - 12 of 12)
