Tools and Equipment - Dolly / Handler

or browse the results below.

Page 1 of 1 (Showing results 1 - 9 of 9)

1.) 72045 - Item No.
Disc Brake Hub Handler

INTENDED USE:

Designed for removing, installing, and transporting heavy disc brake hub assemblies.

FEATURES:

Replace rotor, seals and bearings with no heavy lifting.
Reduces lost-time injuries by preventing back and hand injuries.
Four polyurethane caster wheels to protect epoxy floors while enhancing smooth maneuverability through the shop (two caster wheels with locks).
Works on disc brake hubs for all Class 8 trucks, transit vehicles and school buses.
Attachment to the hub is made easy by using the vehicle lug nuts.
Quickly raises the load to working height using either air or battery tools.
14-1/4" range of operation.

Click - Download PDF of Drawing

Price: $1,189.99

Request Quote

2.) 82310 - Item No.
Single Tire Handler Dolly - Narrow

Narrow Model

INTENDED USE:

To provide added leverage to easily remove or install truck tire-and-wheel assemblies.

FEATURES:

Heavy-duty tubular steel construction capable of handling 300 pounds.
Easy grip handle along with improved “bent arm” design improves leverage for easier installation and minimizes back strain.
Steel alignment rollers allow simple alignment of the wheel to the wheel studs.
Spring-loaded kickstand offers convenient storage.
Can accommodate tire diameters from 24" to 36".

DIMENSIONS:

Handles Tires	24" - 36"
Length	42.5"
Width	24.75"
Shipping Weight	19 lbs.

Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

Price: $134.00

3.) 82312 - Item No.
26" Single Tire Handler Dolly - Wide Model

INTENDED USE:

To provide added leverage to easily remove or install truck tire-and-wheel assemblies.

FEATURES:

Heavy-duty tubular steel construction capable of handling 300 pounds.
Easy grip handle along with improved “bent arm” design improves leverage for easier installation and minimizes back strain.
Steel alignment rollers allow simple alignment of the wheel to the wheel studs.
Spring-loaded kickstand offers convenient storage.
Can accommodate tire diameters from 36" to 48".

DIMENSIONS:

Handles Tires	36" - 48"
Length	41"
Width	32"
Shipping Weight	22 lbs.

Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

Price: $154.00

4.) 82320 - Item No.
3/4 Ton Capacity Wheel Dolly

INTENDED USE:

For the removal and installation of single, tandem and duplex tires and wheels.

FEATURES:

Dolly handles any tire diameter and up to 1500 lbs. combined tire and wheel weight.
Three 4” diameter swivel ball bearing caster wheels provide easy maneuverability and positioning.
Travel adjustment on rear locking caster wheel matches lifting arms with spindle angle.
6’ chain included to secure wheel assembly to dolly during removal and transport.
Quick disconnect push/pull handle provides unobstructed access to hub area.

DIMENSIONS:

Lift Travel	4.75"
Lift Arms
Spread	26"
Length	24.5"
Overall Dimensions
Length	43.5"
Width	39.5"
Height	35"
Shipping Weight	175 lbs.

Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

Price: $1,072.82

5.) 72040B - Item No.
Brake Drum Handler

Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

Price: Discontinued

This product has been discontinued.

6.) 72040C - Item No.

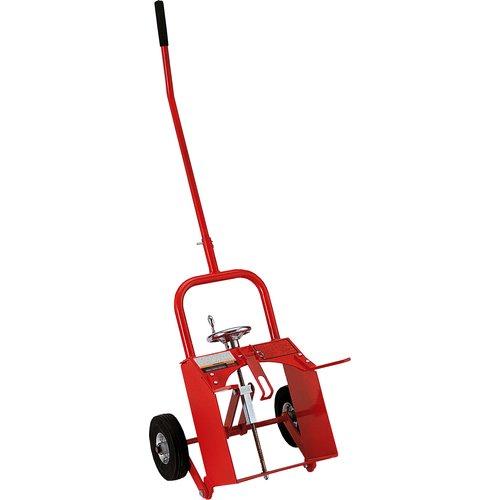

NORCO 72040C BRAKE DRUM HANDLER

PRODUCT DETAILS

Brake drum handler designed for removing, installing, and transporting outboard-mounted brake drums and inboard-mounted drums with disc wheel hubs.

FEATURES

Handles 15-inch and 16-1/2-inch drums.
Rotating handle assists with raising and lowering the drum.
8-inch ball-bearing wheels with semi-pneumatic tires support maneuverability.
Adjustable angle bracket secures supported drum configurations to the carriage.
Detachable handle supports convenient storage.

SPECS

Low lift height	10.25 in.
High lift height	15.25 in.
Handle length	35.5 in.
Shipping weight	64 lb

PRODUCT DIMENSIONS

Length	62.5 in.
Width	21 in.

Price: $407.99

7.) 78090A - Item No.

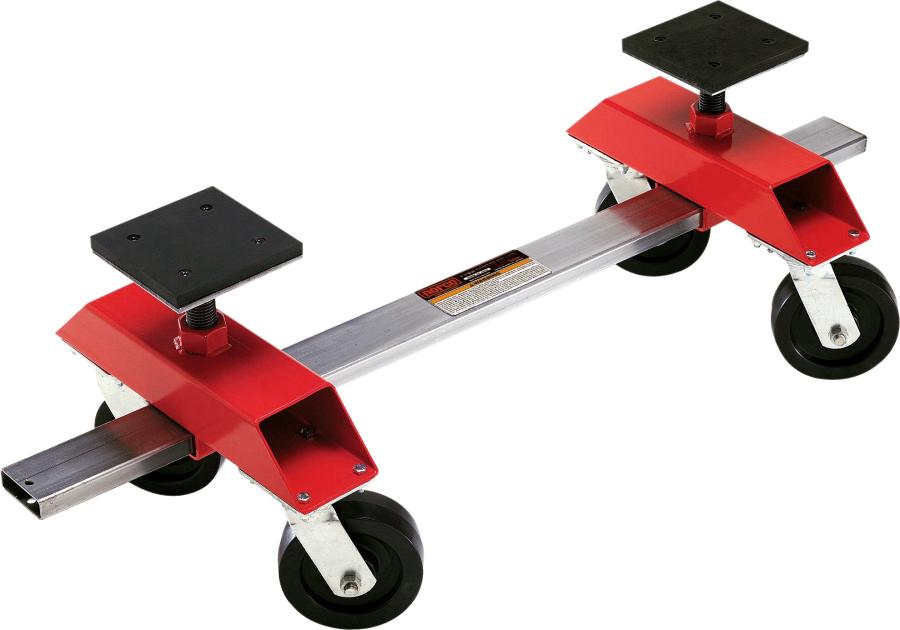

Car Dolly 3600 Lb. Capacity

INTENDED USE:

For easy movement of vehicles that have been rendered inoperable due to engine/ transaxle removal or other mechanical problems. Frees up lifts and floor jacks for other work to be performed. Used in automobile repair, collision repair, and vehicle inspection applications.

FEATURES:

Supports a vehicle with or without tires.
Allows FWD vehicle to be easily moved in the service bay when drive train has been removed.
Universal design fits any car without the need for additional vehicle adapters.
Quick and independent width and height adjustments. Fully adjustable outriggers to fit any vehicle frame width. Threaded lift saddles with rubber pads are independently adjustable and provide maximum frame protection.
Does not require installation to the subframe or engine/transaxle cradle mounting holes.
Can be used in pairs for maximum maneuverability in tight places.
Four 6” diameter ball bearing mounted swivel caster wheels rated at 900 pounds capacity each.
Two of the four 6” wheels have wheel locks to prevent dolly from moving.

DIMENSIONS:

Height Adjustment	12.75" to 15.75"
Width	17"
Length Adjustment	30" to 60"
Shipping Weight	65 lbs.

Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

Price: $1,046.33

8.) 82300D - Item No.
Wheel Dolly Rigid Front Wheels 1 Ton

Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

Price: Discontinued

This product has been discontinued.

9.) 82301D - Item No.

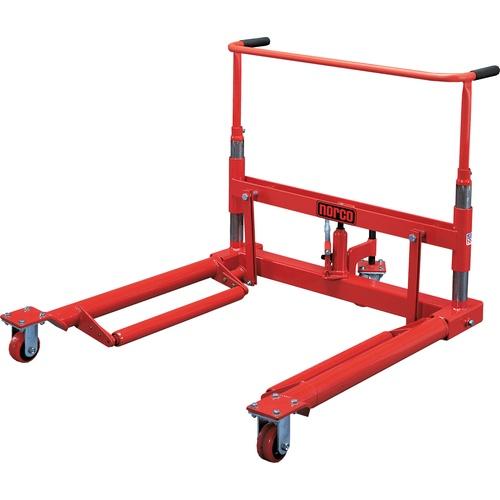

NORCO 82301D 1 TON CAPACITY WHEEL DOLLY, SWIVEL FRONT WHEELS

PRODUCT DETAILS

One-ton wheel dolly with swivel front wheels, designed for removing and installing single, tandem, and duplex tires and wheels.

FEATURES

Swivel casters at the front and rear provide side-to-side maneuverability.
4-inch wheels with polyurethane tread protect the floor.
Lift arms adjust inward for common dual wheel combinations and outward for larger combinations.
Lift arms with ball bearing rollers rotate the rim for bolt pattern alignment.
Lift arms supported at both ends minimize wheel movement.
Adjustable-height push bar provides unobstructed access to the hub area.
Rear caster has 3-1/4 inches of travel adjustment to match the lift arms to the spindle angle.
Safety chain secures the wheel assembly during removal and transport.

SPECS

Capacity	1 ton
Lift travel	7.5 in.
Shipping weight	209 lb

PRODUCT DIMENSIONS

Length	50.5 in.
Width	44.5 in.
Height	39 in.

Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

Price: $1,621.06

Page 1 of 1 (Showing results 1 - 9 of 9)
