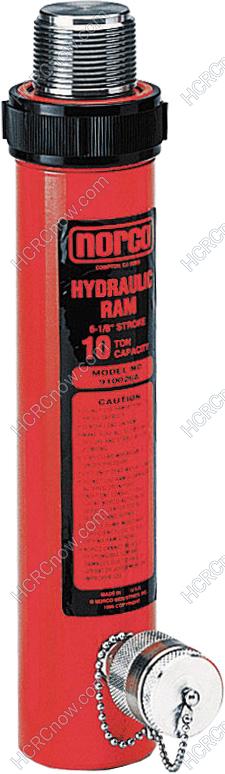

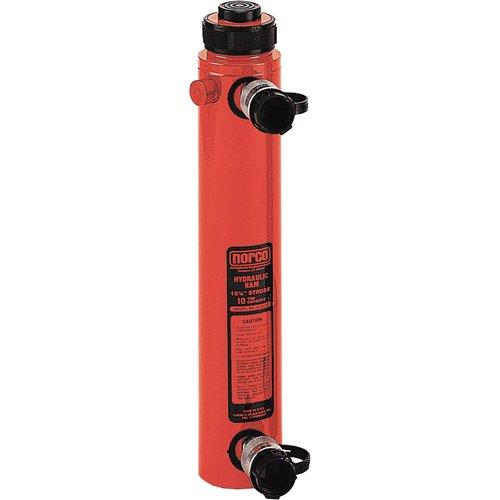

Tools and Equipment - Cylinder / Rams

DIMENSIONS

• Stroke    10.13"
• Minimum Height    16.5"
• Maximum Height    26.63"
• Oil Capacity (Cu. In.)    22.59
• Shipping Weight    14 lbs

FEATURES

• High flow quick connecting coupler and dust cap included on all models.
• Unique piston and cylinder bearings absorb eccentric load stresses in order to protect the cylinder against abrasion, over-extending and jamming.Nickel plating on most cylinder pistons inhibits rusting.
• Baked enamel exterior finish for increased corrosion resistance.
• Polyurethane seals and wipers provide high cycle life.
• Heavy duty return springs provide consistent performance.
• Cylinders comply with ANSI B 30.1.

Click - Download PDF of Drawing
