Tools and Equipment - Air Jacks

or browse the results below.

Page 1 of 1 (Showing results 1 - 4 of 4)
1.) 82990 - Item No.
Portable Air Lift Jack 10 Ton, Made in the USA


Product image of 82990 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: Discontinued This product has been discontinued.
2.) 82992 - Item No.
15 Ton Capacity Portable Air Lift Jack


INTENDED USE:

Garages / repair shops of truck, farm equipment, construction equipment and bus companies. May be used in pairs. Ideal for crowded conditions that require single point contact.

FEATURES:
  • Three-way heavy duty air valve provides fine control when lifting or lowering a load.
  • Extension tubes and detent pins offer multiple lifting heights.
  • Unit easily maneuvered on two 8” diameter rubber tread wheels.
  • Removable handle and 8’ air hose for remote safe positioning and operation.
  • Lifting saddle with locating lugs.
DIMENSIONS:
Low Lift Height 18.125"
High Lift Height 51.375"
Stroke 11.25"
Length 59.5"
Width 15"
Height 36.875"
Shipping Weight 240 lbs.

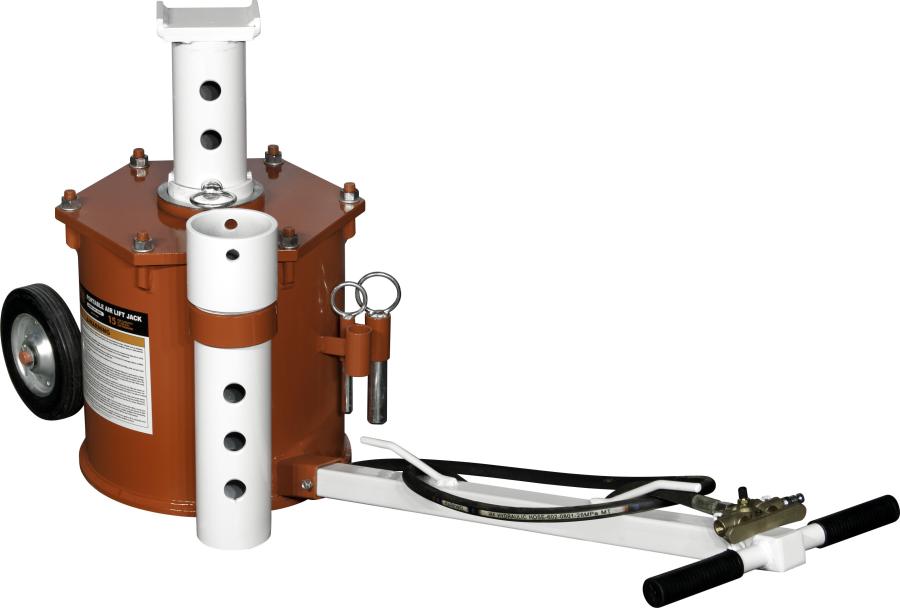

Product image of 82992 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $1,785.67 Request Quote
3.) 82995 - Item No.
8 1/2 Ton Capacity Long Reach Air Lift Jack


INTENDED USE:

For truck, bus, farm equipment and motor home applications where a long reach jack is required to lift at the vehicle bumper, frame or front axle.

FEATURES:
  • Three-way heavy duty air valve provides fine control when lifting or lowering a vehicle.
  • Automatic safety lock engages in five different height positions independent of air pressure.
  • Includes extension tubes and adjustment pins for added height requirements.
  • Two 10” diameter solid wheels are strategically located for better positioning and maneuverability.
  • Scissors action frame design with four 5” diameter steel wheels provides maximum stability during lifting and lowering.
  • Large air cylinder requires only 100 p.s.i. air pressure to lift 5 ton capacity.
  • Over four feet of reach between cylinder and center line of lifting saddle.
DIMENSIONS:
Low Lift Height 10"
High Lift Height 50"
Length 80.5"
Width 38"
Height 53.75"
Saddle Reach 50"
Shipping Weight 935 lbs.

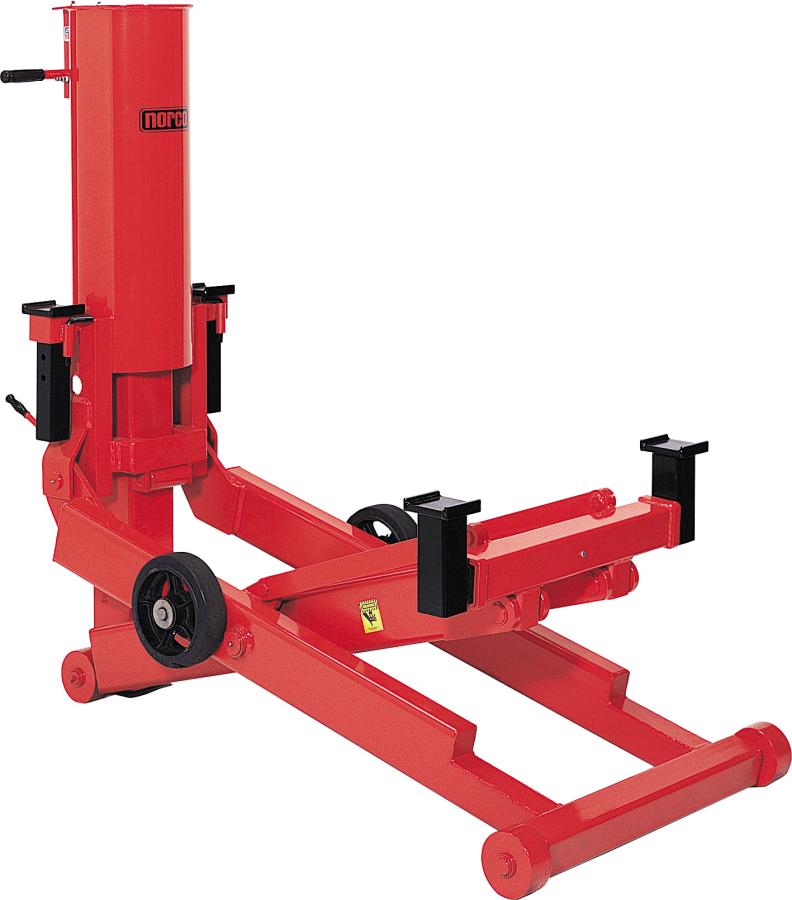

Product image of 82995 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $8,064.00 Request Quote
4.) 82999 - Item No.
10 Ton Capacity Air Lift Jack


INTENDED USE:

Truck and farm equipment dealer garages, heavy duty construction repair shops and bus company garages.

FEATURES:
  • Three-way heavy duty air valve provides fine control when lifting or lowering a vehicle.
  • Automatic safety lock engages in six different height positions independent of air pressure.
  • Designed for lifting entire front or rear of a vehicle.
  • Front swivel caster wheel and two 12-1/4” diameter pneumatic rear tires provide easy maneuverability.
  • Adjustable lifting saddles can be raised and extended to desired position.
DIMENSIONS:
Low Lift Height 12.5"
High Lift Height 50"
Length 40.5"
Width 35.5"
Height 65.75"
Saddle Reach 14.75"
Shipping Weight 638 lbs.

  • NOTE: Additional Freight Fees apply to deliver to residential areas.
  • NOTE: Additional Freight Fees apply if a liftgate is required to unload the freight.
  • NOTE: The receiver will need either a loading dock or a forklift onsite to unload the freight, otherwise they will need liftgate delivery services.

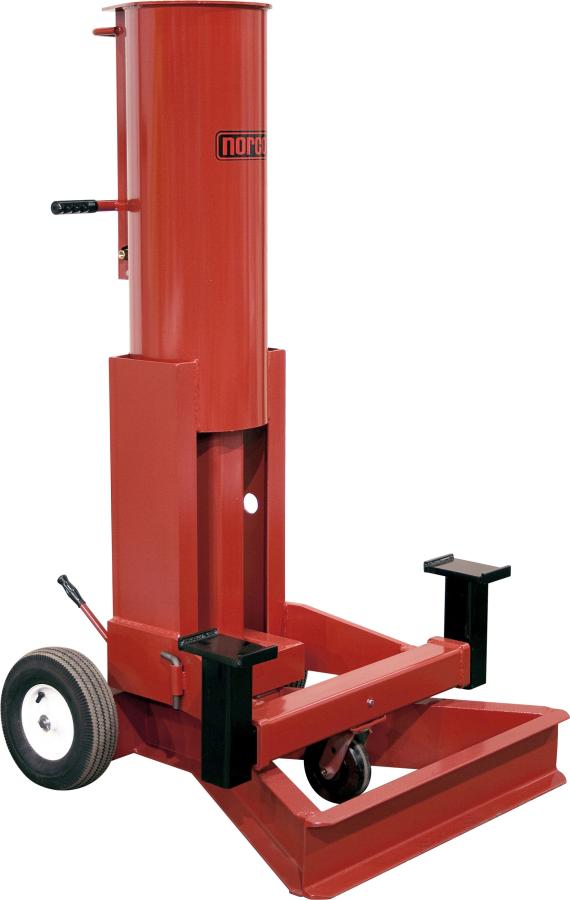

Product image of 82999 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $5,459.00 Request Quote
Page 1 of 1 (Showing results 1 - 4 of 4)
