1.) 79345 - Item No.
3 Ton Capacity Air / Hydraulic Pump Operated Electric Vehicle Rolling Lift Bridge


NOTE: To achieve maximum lifting capacity, the lifting surface must be raised at least 3.25” higher than its lowest point.

NOTE: The model 79326D flat-end or model 79327D hook-end adapter kits must be ordered separately to connect the universal mounting bracket to the pit/lift rails.
INTENDED USE:

Used in quick lube pit applications or in conjunction with above ground lifts. It has lift arms that are wider than our other bridges to meet the needs of wide electric vehicles. This bridge straddles the lift rails and raises the vehicle’s tires off the rails for wheel alignment, brake, tire and suspension work.


DIMENSIONS:
Stroke 9"
Length 35.75"
Width 21.5"
Height 9.5625"
Shipping Weight 350 lbs.

FEATURES:
  • Push button air/hydraulic pump provides safe, quick lifting up to 9” which allows for a maximum lift height of 19-7/8" when using both adapters and extension screw extended.
  • The lifting pads safely support the vehicle on the bridge and the adjustable lift arms span up to 71-5/8”.
  • Universal mounting brackets adjust to a lift rail range of 32" to 46-1/2”.
  • Flat-end and hook-end adapter brackets are equipped with spring-loaded roller bearings for
    smooth maneuverability of bridge on lift rails. These brackets are sold separately.
  • Mechanical stop prevents accidental lowering of bridge.
  • Lowering is accomplished with one hand on the release lever and the other hand releasing the mechanical stop.
  • Equipped with rubber faced saddles for differential lifting.
  • Included lift adapters: (2) 3-1/2” Adapters, (2) 5” Adapters, and (2) Padded Saddles w/ Extension Screws
  • Available mounting adapters:
    79326D: Flat-End Adapter Bracket Kit
    79327D: Hook-End Adapter Bracket Kit
  • Overall width from outside edge of lift pad:
    - Arms retracted: 36-11/16”
    - Arms extended: 71-5/8”

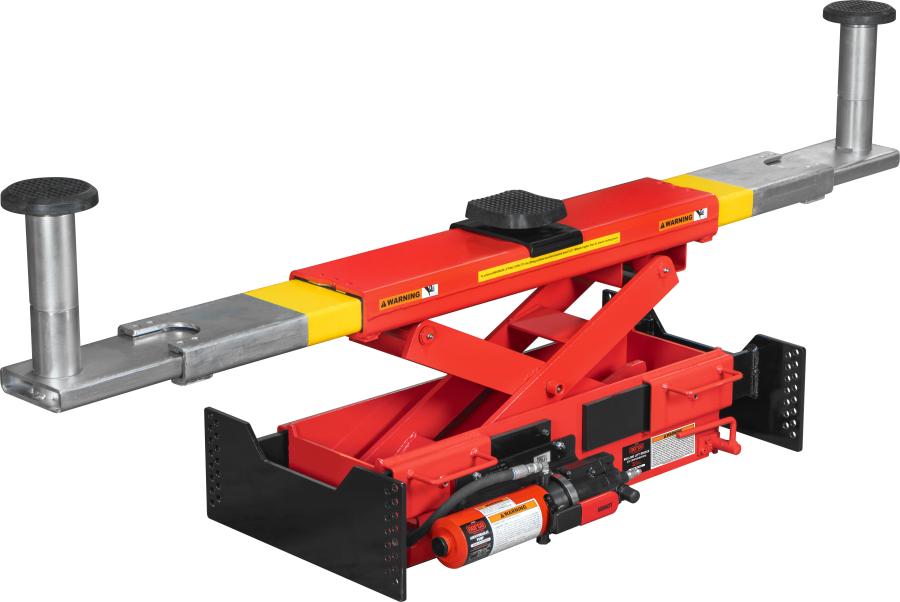

Product image of 79345 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $4,020.00 Request Quote
