Page 1 of 1 (Showing results 1 - 18 of 18)
1.) 81012 - Item No.
Manufacturer: Norco

12 Ton Capacity Jack Stands


INTENDED USE:

Fleet garages, agricultural and
construction maintenance shops.

FEATURES:
  • Unique spring loaded pawl provides constant locking pressure against lifting column.
  • Four legged base with foot pads for added strength and a more secure footing on asphalt.
  • Common machine bolt secures lifting column to stand and provides added strength when stand is continuously lifted and handled by the column.
  • Positive lock handle cannot be disengaged until load is off the saddle column. Lock handle can be used as a carrying handle.
  • ALL STANDS ARE INTENDED TO BE USED IN PAIRS.
DIMENSIONS:
Low Height 19.625"
High Height 29.375"
Height Intervals 1.25"
Base Size 13" x 15"
Saddle Size 1.625" x 4.75"
Shipping Weight 86 lbs.







Product image of Norco 81012 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $355.00
2.) 81050 - Item No.
Manufacturer: Norco

50 Ton Capacity Trailer Stabilizing Stand


INTENDED USE:

To stabilize and assist in supporting
the front or rear end of a loaded or
unloaded tractorless trailer.

FEATURES:
  • Designed to meet the performance and safety requirements of the ASME PASE.
  • Meets OSHA requirements for stabilizing loaded and unloaded trailers.
  • 100,000 lb. static load capacity.
  • 15,000 lb. lifting capacity.
  • Adjusts from 39” to 51”.
  • Wide 14” diameter base for added stability.
  • 8” diameter top plate.
  • Removable pipe handle.
DIMENSIONS:
Low Height 39"
Extended Height 51"
Base Size 14" Dia.
Saddle Size 8" Dia.
Shipping Weight 152 lbs.

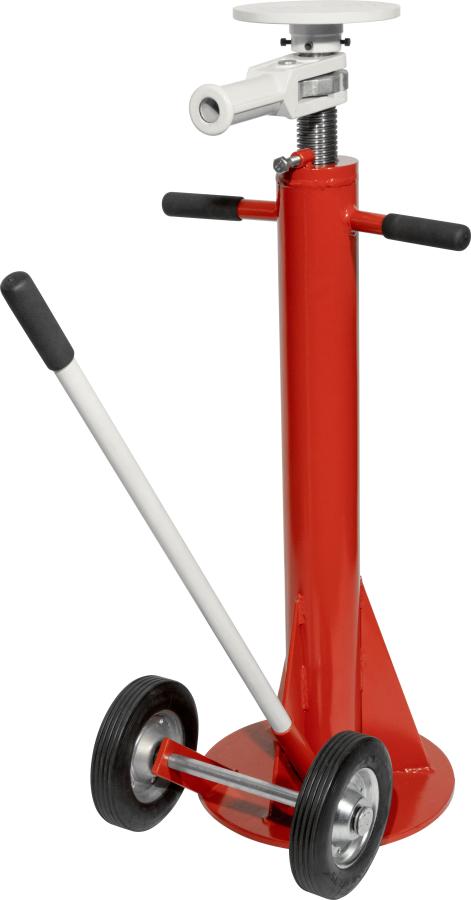

Product image of Norco 81050 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing 		Price: $766.00 Request Quote
3.) 81205 - Item No.
Manufacturer: Norco

5 Ton Capacity Jack Stands


INTENDED USE:

Low profile design in order to support
forklifts and heavy machinery.

FEATURES:
  • Pin type support column adjusts to four different height positions.
  • Pins chamfered for easier insertion into positioning holes.
  • Adjustment pin is secured to stand to prevent loss.
  • Handle provides ease of positioning and carrying.
  • 9” square base secures and stabilizes load.
  • Each stand sold individually
  • 5 Tons Each stand
DIMENSIONS:
Low Height 9.5"
High Height 15.75"
Height Intervals 3 x 2"
Base Size 9" x 9"
Saddle Size 3" x 4.5"
Shipping Weight 38 lbs.

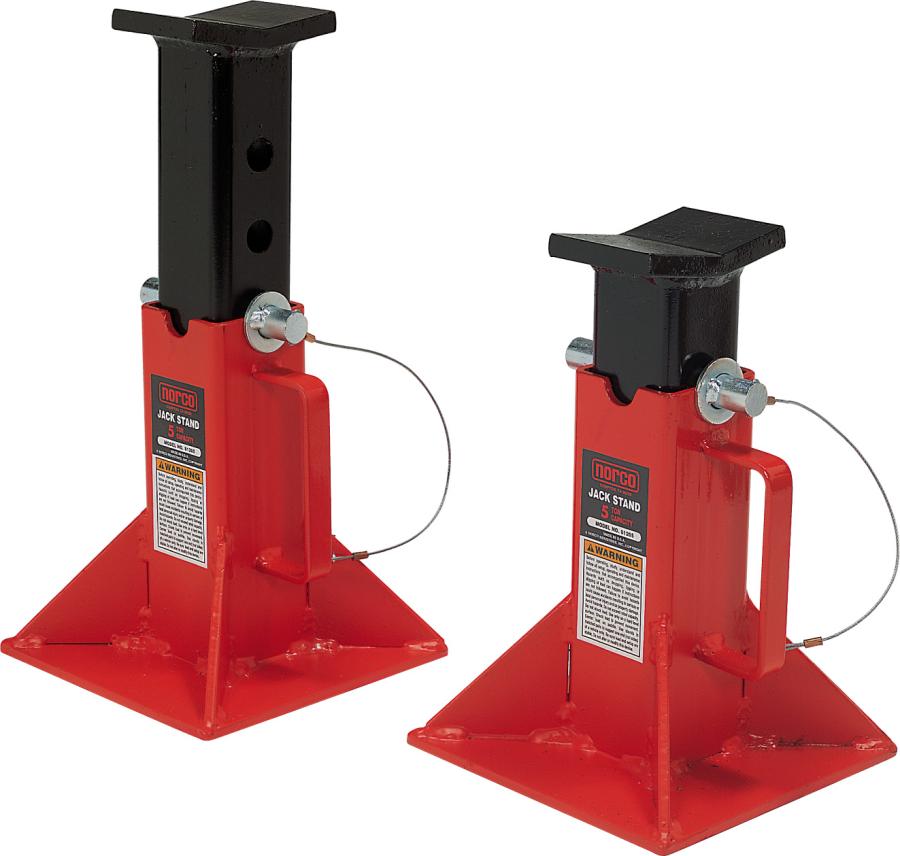

Product image of Norco 81205 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $319.00
4.) 81208 - Item No.
Manufacturer: Norco

10 Ton Capacity Short Height Jack Stands


INTENDED USE:

Fleet garages, agricultural and construction maintenance shops where a pin type height adjustment column is desired.

FEATURES:
  • Pin type support column adjusts to multiple height positions. See specification chart.
  • Pins chamfered for easier insertion into positioning holes.
  • Adjustment pin is secured to stand to prevent loss.
  • Four legged base made of heavy schedule 2” diameter pipe for added stability.
  • Large support saddle with locating lugs position and center load.
  • 10 Tons each stand
  • Each stand sold individually
DIMENSIONS:
Low Height 10.5"
High Height 17"
Height Intervals 4 x 1.5"
Base Size 12.5" x 12.5"
Saddle Size 3" x 5"
Shipping Weight 60 lbs.

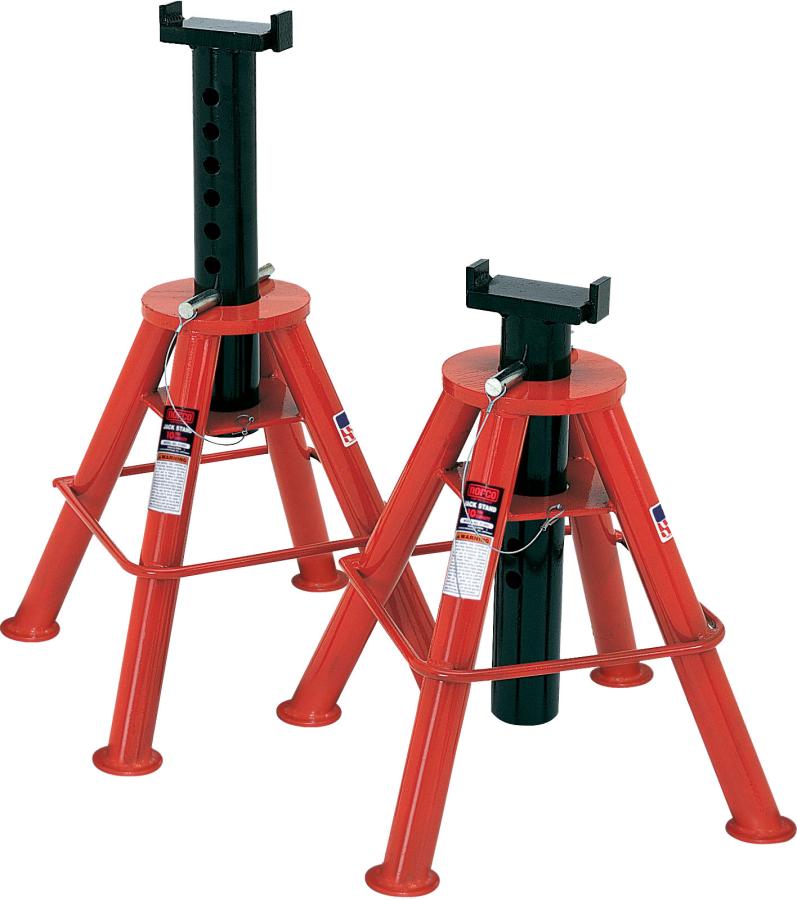

Product image of Norco 81208 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $523.40
5.) 81209 - Item No.
Manufacturer: Norco

10 Ton Capacity Medium Height Jack Stands


INTENDED USE:

Fleet garages, agricultural and construction maintenance shops where a pin type height adjustment column is desired.

FEATURES:
  • Pin type support column adjusts to multiple height positions. See specification chart.
  • Pins chamfered for easier insertion into positioning holes.
  • Adjustment pin is secured to stand to prevent loss.
  • Four legged base made of heavy schedule 2” diameter pipe for added stability.
  • Large support saddle with locating lugs position and center load.
  • 10 Tons each stand
  • Each stand sold separately
DIMENSIONS:
Low Height 18.5"
High Height 30"
Height Intervals 7 x 1.5"
Base Size 17" x 17"
Saddle Size 3" x 5"
Shipping Weight 80 lbs.







Product image of Norco 81209 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $660.43
6.) 81210 - Item No.
Manufacturer: Norco

10 Ton Capacity High Height Jack Stands


INTENDED USE:

Fleet garages, agricultural and construction maintenance shops where a pin type height adjustment column is desired.

FEATURES:
  • Pin type support column adjusts to multiple height positions. See specification chart.
  • Pins chamfered for easier insertion into positioning holes.
  • Adjustment pin is secured to stand to prevent loss.
  • Four legged base made of heavy schedule 2” diameter pipe for added stability.
  • Large support saddle with locating lugs position and center load.
DIMENSIONS:
Low Height 28"
High Height 47"
Height Intervals 10 x 2"
Base Size 16" x 16"
Saddle Size 3" x 5"
Shipping Weight 106 lbs.







Product image of Norco 81210 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $820.43 Request Quote
7.) 81225 - Item No.
Manufacturer: Norco

25 Ton Capacity Jack Stands


INTENDED USE:

Fleet and maintenance garages where low profile stands are used to support trucks and loaded trailers.

FEATURES:
  • Pin type support column adjusts to four different height positions.
  • Pins chamfered for easier insertion into positioning holes.
  • Adjustment pin is secured to stand to prevent loss.
  • Handle provides ease of positioning and carrying.
  • 3/8” thick solid steel base plate for added stability.
  • 25 tons each stand

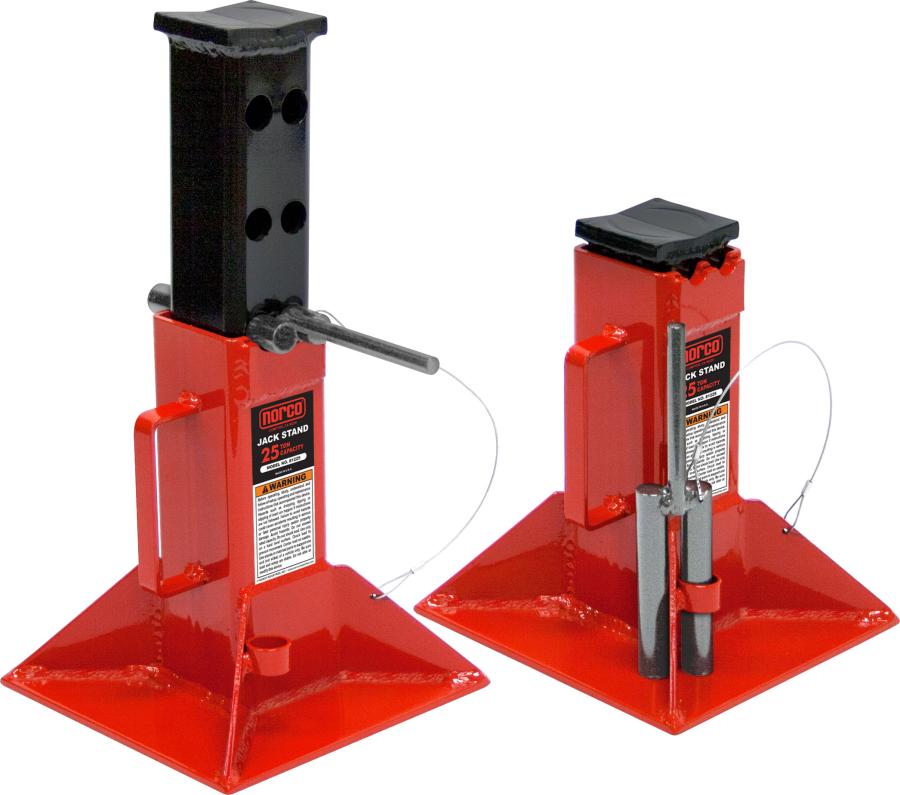

Product image of Norco 81225 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $573.29
8.) 82019 - Item No.
Manufacturer: Norco

20 Ton Capacity Pair of Truck Ramps (10 Ton Each Ramp)


INTENDED USE:

Elevates front or rear of vehicle for access to frame and components. Particularly useful on vehicles with low profile or ground-effects.

FEATURES:
  • Handles tires with up to 10” tread widths.
  • Telescopic 34" T-handle extends and lifts up to expose wheels for easy
    maneuverability around the shop. Retracts for easy storage.
  • Perforated holes in ramps provide traction for the tires.
  • Non-skid rubber base pads prevent slippage when driving onto or off of ramps.
DIMENSIONS:
Length 48.25"
Width 12.625"
Height 9"
Shipping Weight 204 lbs.

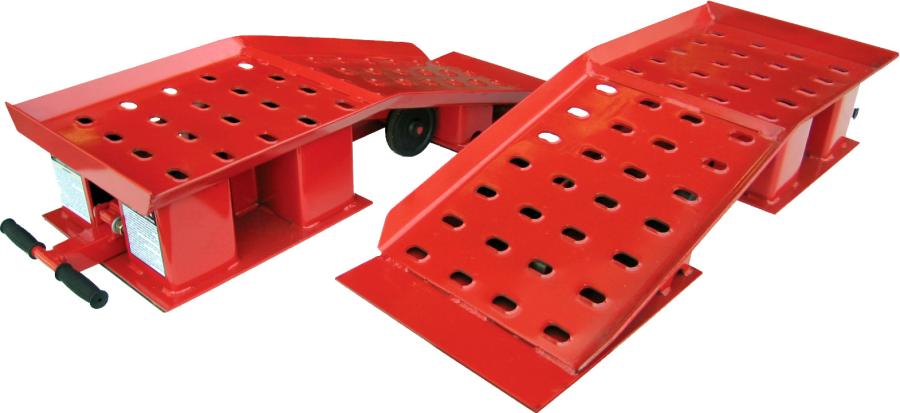

Product image of Norco 82019 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $1,641.86 Request Quote
9.) 82020 - Item No.
Manufacturer: Norco

20 Ton Capacity Pair of Wide Truck Ramps (10 Ton Each Ramp)


INTENDED USE:

Elevates front or rear of vehicle for access to frame and components. Particularly useful on vehicles with low profile or ground-effects.

FEATURES:
  • Handles tires with up to 16” tread widths.
  • Telescopic 34" T-handle extends and lifts up to expose wheels for easy
    maneuverability around the shop. Retracts for easy storage.
  • Perforated holes in ramps provide traction for the tires.
  • Non-skid rubber base pads prevent slippage when driving onto or off of ramps.
DIMENSIONS:
Length 50.5"
Width 18.375"
Height 9.25"
Shipping Weight 346 lbs.







Product image of Norco 82020 on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $1,198.00 Request Quote
10.) 81004C - Item No.
Manufacturer: Norco

NORCO 81004C 3 TON CAPACITY JACK STANDS, PAIR


PRODUCT DETAILS

Pair of jack stands, each rated at 3 tons, for automotive use where the vehicle must be supported before making repairs. Stands are intended to be used in pairs.

FEATURES

  • Spring-loaded pawl provides constant locking pressure against the lifting column.
  • Four-legged base with foot pads adds strength and secure footing on asphalt.
  • Common machine bolt secures the lifting column to the stand and adds strength when the stand is lifted by the column.
  • Recessed column saddle accepts a vehicle panel rail.
  • Positive lock handle cannot be disengaged until the load is off the saddle column, and doubles as a carrying handle.

SPECS

Capacity (each stand)3 tons
Low height12 in.
High height17.5 in.
Height intervals0.5625 in.
Saddle size1.125 in. x 4.625 in.
Shipping weight (pair)19 lb

PRODUCT DIMENSIONS

Base size7.5 in. x 7.875 in.



Product image of Norco 81004C on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $72.00
11.) 81022B - Item No.
Manufacturer: Norco

Trailer Stabilizer Stand USA 20 Ton


Product image of Norco 81022B on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $357.75
12.) 81033A - Item No.
Manufacturer: Norco

NORCO 81033A 3/4 TON CAPACITY UNDER HOIST STAND


PRODUCT DETAILS

Under hoist stand designed to support vehicle components rather than the vehicle. Suited to exhaust system installation, shock absorber replacement, and tasks that relieve pressure on components.

FEATURES

  • Lightweight, slender design makes handling easy in close quarters.
  • Quick-adjust spin handle with thrust bearing eliminates wear and eases turning under load.
  • Acme threaded screw, 1 inch in diameter, provides 26-1/4 inches of travel.
  • Same basic construction as the 81034A, without the foot pedal.

SPECS

Capacity3/4 ton
Saddle size1.625 in. x 5.25 in.
Shipping weight36 lb

PRODUCT DIMENSIONS

Low height55.25 in.
Extended height81.5 in.
Base diameter12 in.



Product image of Norco 81033A on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $174.00
13.) 81205i - Item No.
Manufacturer: Norco

NORCO 81205I 5 TON CAPACITY LOW PROFILE JACK STANDS, IMPORTED, SET OF 2


PRODUCT DETAILS

Set of two low-profile pin-type jack stands, each rated at 5 tons, designed to support forklifts and heavy machinery. Stands are intended to be used in pairs.

FEATURES

  • Pin-type support column adjusts to four height positions.
  • Pins are chamfered for easier insertion into the positioning holes.
  • Adjustment pin is secured to the stand to prevent loss.
  • Handle eases positioning and carrying.
  • 9-inch square base secures and stabilizes the load.

SPECS

Capacity (each stand)5 tons
Low height9.5 in.
High height15.75 in.
Height intervals3 x 2 in.
Saddle size3 in. x 4.5 in.
Shipping weight (pair)38 lb

PRODUCT DIMENSIONS

Base size9 in. x 9 in.



Product image of Norco 81205i on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $171.00
14.) 81208i - Item No.
Manufacturer: Norco

NORCO 81208I 10 TON CAPACITY SHORT HEIGHT JACK STANDS, PIN TYPE, IMPORTED


PRODUCT DETAILS

Short-height pin-type jack stands, each rated at 10 tons, for fleet garages and agricultural and construction maintenance shops where a pin-type height adjustment column is preferred.

FEATURES

  • Pin-type support column adjusts to multiple height positions.
  • Four-legged base made of heavy-schedule 2-inch diameter pipe adds stability.
  • Intended to be used in pairs.

SPECS

Capacity (each stand)10 tons
Low height10.5 in.
High height17 in.
Height intervals4 x 1.5 in.
Saddle size3 in. x 5 in.
Shipping weight (pair)60 lb

PRODUCT DIMENSIONS

Base size12.5 in. x 12.5 in.



Product image of Norco 81208i on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $283.29
15.) 81209i - Item No.
Manufacturer: Norco

NORCO 81209I 10 TON CAPACITY MEDIUM HEIGHT JACK STANDS, PIN TYPE, IMPORTED


PRODUCT DETAILS

Medium-height pin-type jack stands, each rated at 10 tons, for fleet garages and agricultural and construction maintenance shops where a pin-type height adjustment column is preferred.

FEATURES

  • Pin-type support column adjusts to multiple height positions.
  • Four-legged base made of heavy-schedule pipe adds stability.
  • Intended to be used in pairs.

SPECS

Capacity (each stand)10 tons
Low height18.5 in.
High height30 in.
Height intervals7 x 1.5 in.
Saddle size3 in. x 5 in.
Shipping weight (pair)80 lb

PRODUCT DIMENSIONS

Base size17 in. x 17 in.



Product image of Norco 81209i on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $380.43
16.) 81210i - Item No.
Manufacturer: Norco

NORCO 81210I 10 TON CAPACITY HIGH HEIGHT JACK STANDS, PIN TYPE, IMPORTED


PRODUCT DETAILS

High-height pin-type jack stands, each rated at 10 tons, for fleet garages and agricultural and construction maintenance shops where a pin-type height adjustment column is preferred.

FEATURES

  • Pin-type support column adjusts to multiple height positions.
  • Four-legged base made of heavy-schedule pipe adds stability.
  • Intended to be used in pairs.

SPECS

Capacity (each stand)10 tons
Low height28 in.
High height47 in.
Height intervals10 x 2 in.
Saddle size3 in. x 5 in.
Shipping weight (pair)106 lb

PRODUCT DIMENSIONS

Base size16 in. x 16 in.



Product image of Norco 81210i on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $489.00
17.) 81225i - Item No.
Manufacturer: Norco

NORCO 81225I 25 TON CAPACITY JACK STANDS, PIN TYPE, IMPORTED


PRODUCT DETAILS

Low-profile pin-type jack stands, each rated at 25 tons, for fleet and maintenance garages that support trucks and loaded trailers. Stands are intended to be used in pairs.

FEATURES

  • Pin-type support column adjusts to four height positions.
  • Pins are chamfered for easier insertion into the positioning holes.
  • Adjustment pin is secured to the stand to prevent loss.
  • Handle eases positioning and carrying.
  • 3/8-inch thick solid steel base plate adds stability.

SPECS

Capacity (each stand)25 tons
Low height12 in.
High height20 in.
Height intervals3 x 3 in.
Saddle size2.25 in. x 3.25 in.
Shipping weight (pair)65 lb

PRODUCT DIMENSIONS

Base size10 in. x 10 in.



Product image of Norco 81225i on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $340.43
18.) 81022Bi - Item No.
Manufacturer: Norco

Trailer Stabilizer Stand Imported 20 Ton


Product image of Norco 81022Bi on HCRCnow.com.

Download PDF
Click - Download PDF of Drawing

This is our estimated shipping charge. If the actual charge is higher we will contact you before shipment.

 Price: $442.80
Page 1 of 1 (Showing results 1 - 18 of 18)

« Back to Tools and Equipment Categories
